Lexus 1UZFE and 3UZFE ARP Main Stud Kit

UPDATED LEXTREME FORUMS - Post Questions Here!

After weeks of research and making lots of phone calls, I finally put together an ARP Studs/Bolts Kit for the Lexus 1UZFE and 3UZFE.  This kit will fit on all Lexus V8 engines.  All GS400, GS430, SC400, SC430, LS400 and LS430.

This kit contain the followings:
* 20 ARP Studs
* 10 ARP side bolts
* 20 ARP Nuts
* 10 OEM seal washers

This kit will make your 6 bolt main to 6 stud/bolt main.  This kit will make your bottom end indestructible.  Here are some pictures of this awesome stud kit:

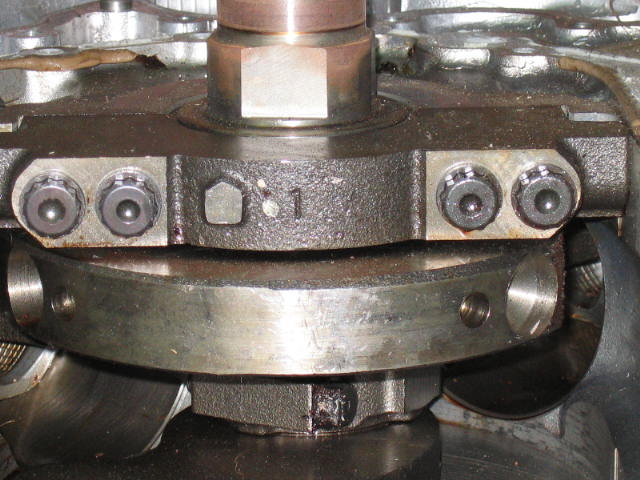

Here is how the lower main bolts look like in 1UZ and 3UZ

Here is another close up picture of the 6 bolt main.  Its a very good and strong design.

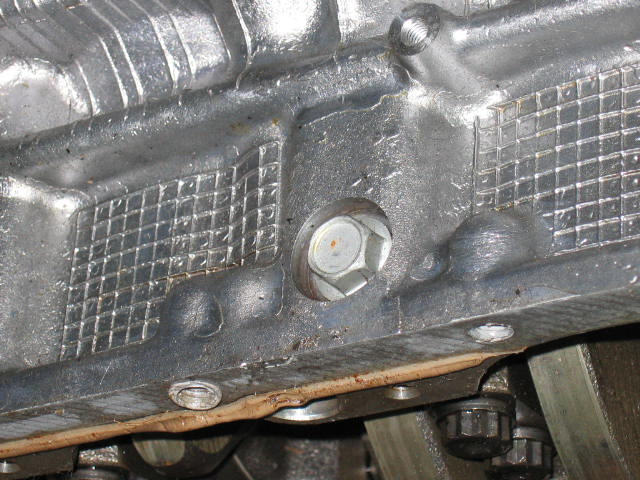

Here is a picture of the side bolt.

Here is a close up picture of the side ARP side bolt.

Here is how it looks like installed into the engine.  Much cleaner compare to the stock bolt on the lower left.

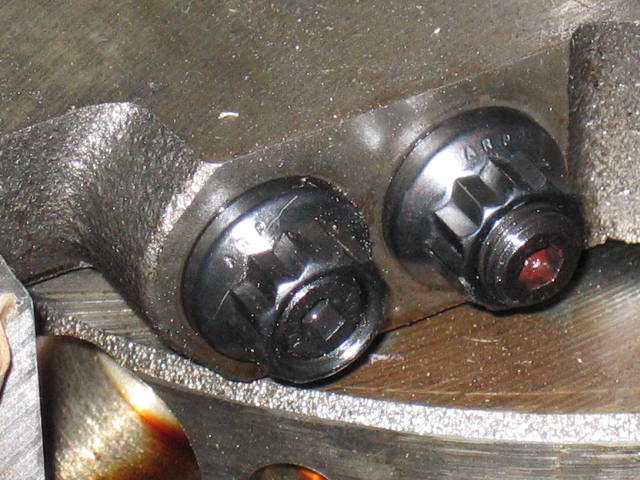

Here is a close up of the 3UZFE ARP Main Studs and Nuts.  Its a perfect fit.

Here is another picture of the stud kit.

Here is how ARP compare to stock 1UZFE studs.  Size does matter!

Here is another picture of the side bolts.  The ARP is much stronger.

Do you have any questions? If so, please head over to the forums to get a quick answer or share your experience!
