my individual throttle bodies for my 1uz :

[DenZel]

well thought id show some pics of my itbs, be using the adaptronic ecu, still trying to find some air filters to suit




another pic how it should look finished i hope.

oh yeah, plus how they can sound like , this really made me want to get them! note. this is the nz a1 kit. Mine will be sitting vertical and are from a different company.
http://www.youtube.com/watch?v=Ba8sT2BQ4uc



[mshawari1]

Good luck man....................



[DenZel]

the car that it will be going in



1uz conversion already been done, now to install the itbs and ecu



[MX73 V8]

ahhh....so you bought that car!

Can't wait to see it finished dood !



[DenZel]

yep, i take it your a toymods member? looking at your name did you buy peewee's old car?



[drifty325i]

They look awesome



[1uzvl]

If only they were tall enough to stick through the bonnet.

Man they sound angry too.



[RedPhoenix]

Wow. Truly a price of art work. Give you $20usd for them right now !


Good luck! love the car too.



[MX73 V8]

yep, i take it your a toymods member? looking at your name did you buy peewee's old car?

Correct on both counts :bigok:



[DenZel]

haha, im too good

thanks for the comments guys

hopefully this build will be started within 2 weeks i hope.



[striker]

Nice piece of kit!

begs for a set of cams, do you plan to run them open or will there be an airbox over the trumpets?

Pipercross makes nice filters to suit paired webbers, 2 of those should look pretty good, they have uncut plates so you can make them fit. if you don't like foam, I think K$N have something the same.

Grtz Thomas



[DenZel]

i want to go air filters, but havent found any decent ones - so might fab a a box.


could u post some sites?



[Vander]

I saw an airbox once and it looked pretty good, I would go with that.



[striker]

make you're own out of carbon, using the polystyrene foam method.

the superbike guys use it all the time for making tanks etc etc.

Grtz Thomas



[ed_ma61]

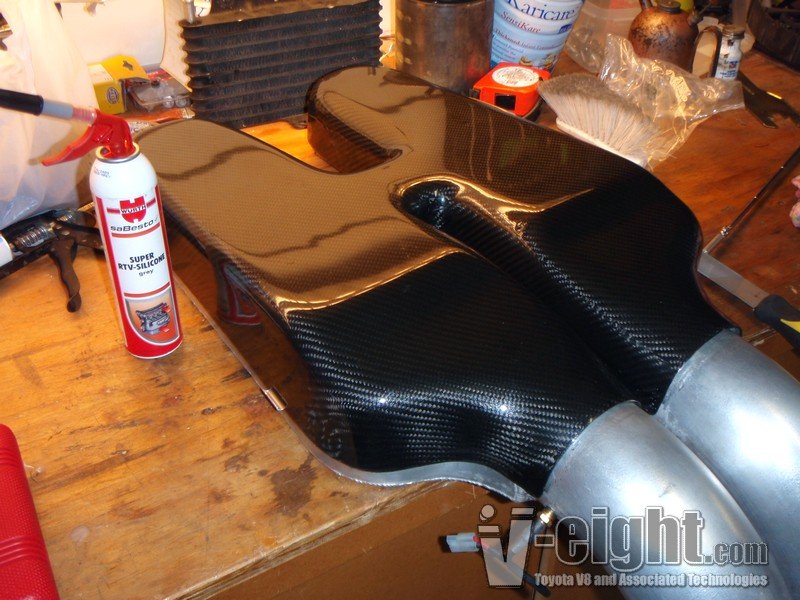

make you're own out of carbon, using the polystyrene foam method.



[DenZel]

yeh seen your site, just dont have the tools or know-how to do what your doing, make one for me aswell



[DenZel]

ed, cant find your recent threads off your build....mainly the induction pipes and box...can you link me?



[striker]

@ Edd, that's looking bloody nice!

exactly what I mean, I think you made a mould before making the box cause the clear finnish looks top notch, right?

if you would presurize the box using a roots would you think it hold up with that? think about 0.8bar over atmo @80 to 90 degrees celcius
I'm still thinking for a way to duct the air from m compressors into the heat exchanger, and this sure looks nice!

grtz Thomas



[DenZel]



[DenZel]

managed to get some pics that the workshop had taken to get sent to my email, as i went by there today and had a look, they have a whole bunch of pics, but they just copied and pasted these into my email. Still a bit dirty, but you get the idea.

pretty much all done beside the general tidy up and fiddly bits, should be on a dyno tommorow or maybe next week. the ecu took for ever, as it was a one off type of install, the adaptronic has been used on auto 1uz, but just the soarers, and the celsior ecu is a bit different, so it took quite some time, as they had to do it wire by wire,pinouts ect ect.

as you can see couple things had to be made up like the braided lines/fittings, accelerator cable, fuel rail, fuel reg and vacuum reservior chamber for the tps, plus probably a whole lot more i cant think of now.
