Toyota Lexus Injector Data and Specs

UPDATED LEXTREME FORUMS - Post Questions Here!

Connector type E

color              [ohm]          cc/min       kg/cm^2  valve hole  engine

dark grey               1.7               200              2.9        cone (2)      3S-FE (-87.8)
beige                    1.7               200              2.9        cone (2)      4Y-E (87.8-)
orange                  1.7               200              2.9        cone (2)      22R-E (87.8-)
brown                   1.7               200              2.9        cone (1)      3VZ-E
pink                      2.7               200              2.9        ball (2)       4A-GE (EFI-D = with MAP sensor 87.5-)
yellow                   2.7               295              2.55      ball (2)       7M-GE
reddish-orange      2.9               365              2.55       ball (2)       4A-GZE
black               2.9           430          2.55     ball (2)     7M-GTE, 3S-GTE (-89.8)
-                        1.3               560              2.55       pintle (1)    1S-i (single point injection)
black                    2.9               430              2.55       cone (2)      3S-GTE (89.8-) [side feed type!!!]

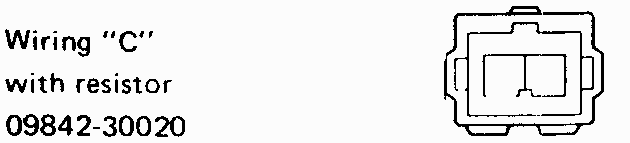

Connector type C

light green             2.4               145               2.55         pintle (1)   4K-E
green                    2.4               145               2.55         pintle (1)   1G-E
dark grey               2.0               182              2.55         pintle (1)   4A-GE (EFI-D -87.5)
grey                      2.4              182/195         2.55/2.9    pintle (1    4M-E, 5M-E, 5M-GE,
blue                      2.4               210              2.55          pintle (1)   4A-GE (EFI-L -87.8)
yellow-orange        1.7               250              2.55          pintle (1)   22R-TE (-85.8)
pink                      1.6               295              2.55          pintle (1)   22R-TE (85.8-)

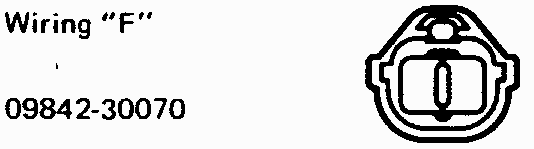

Connector type F

red / dark-blue        13.8             155              2.9          cone (2)      3E-E
violet                     13.8             155              2.9          ball (1)      3E-E (-90.8), 2E-E
sky-blue                13.8             155              2.9          cone (2)      1G-FE
light-green             13.8             176              2.9          cone (2)      4A-FE (Corolla -89.8)
grey                      13.8             176              2.9          cone (2)      4A-FE (89.8-)
dark-blue               13.8             200              2.9          cone (2)      3S-FE (87.8-)
orange blue           13.8             200              2.9          cone (2)      22R-E (88.8-)
brown                   13.8             200              2.9          cone (1)      3VZ-FE
red                       13.8             200              2.9          ball (2)      2VZ-FE
sky-blue               13.8             213              2.9          cone (1)      3F-E
beige                   13.8             213              2.9          ball (2)      4A-GE (EFI-L 87.8-89.8)
yellow                  13.8             213              2.9          cone (2)      5S-FE
green                   13.8             250              2.9          cone (2)      4A-GE (EFI-D 89.8-)
violet                   13.8             250              2.9          cone (2)      4A-GE (EFI-L 89.8-)
violet             13.8          251             2.9    cone (2)      1UZ-FE
green             13.8             295              2.55         cone (2)      3S-GE (87.8-89.8 with TWC)
pink               13.8             315              2.9          cone (2)      3S-GE (89.8-)
light-green       3.8              315              2.9          ball (2)       7M-GE (88.8-, US 89.8-)
light-green                13.8             228              2.9          cone (2)      2RZ-E [side feed type!!!]
violet                     13.8             282              2.9          cone (2)      2TZ-FE [side feed type!!!]

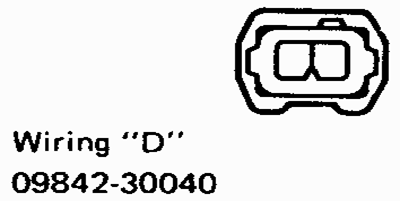

Connector type D
purple                    13.8              155              2.9           pintle (1)     4A-FE (Carina II, lean burn)
brown                    13.8              250              2.55          pintle (1)     3S-GE (all -89.8 except 87.7-89.8 with TWC)
