Here are pictures I recently took for a friend in Australia who is trying to make a header or extractor for the U.S. Spec Lexus SC400. This is a pictorial gallery with brief descriptions.

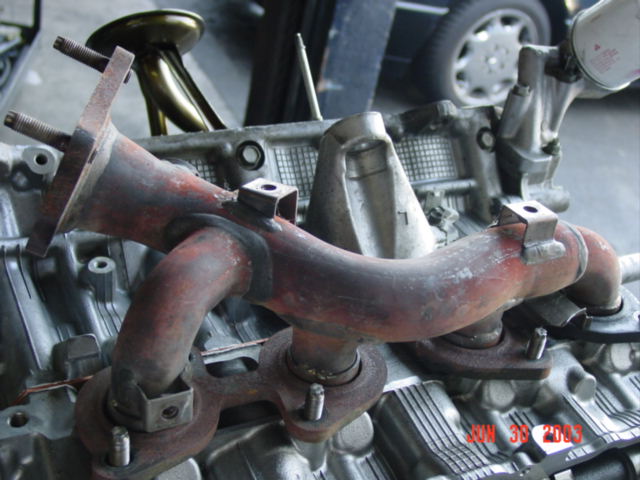

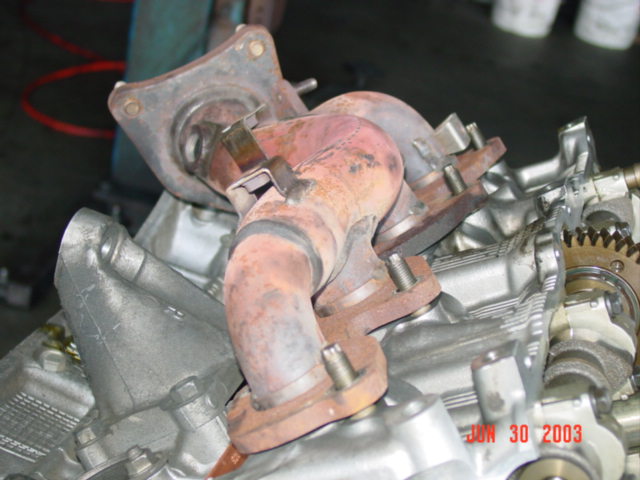

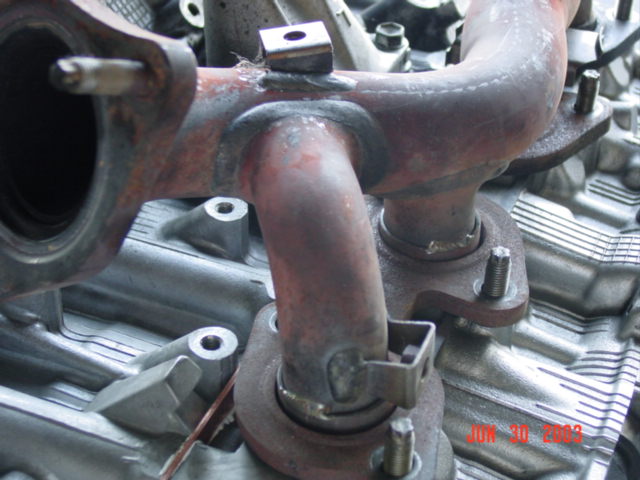

Here is a picture of the driver side (LHD) SC400 header bolt on a 1UZFE long block.

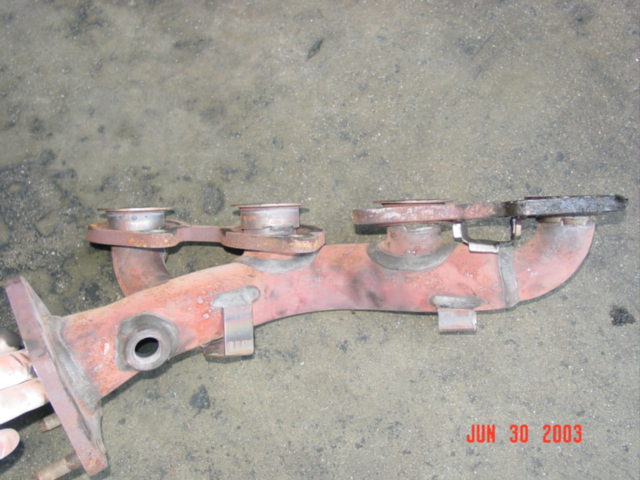

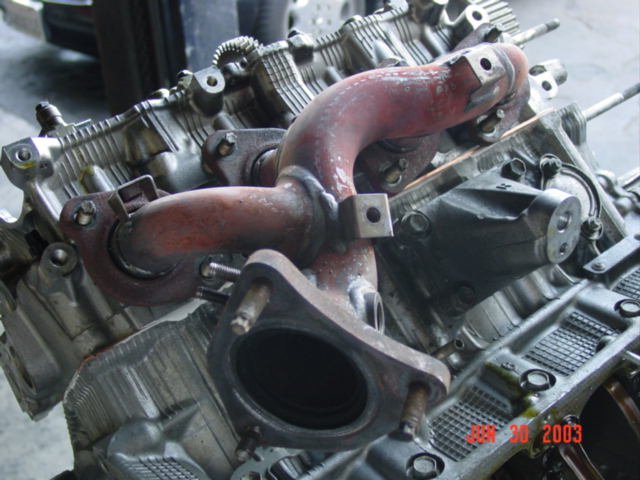

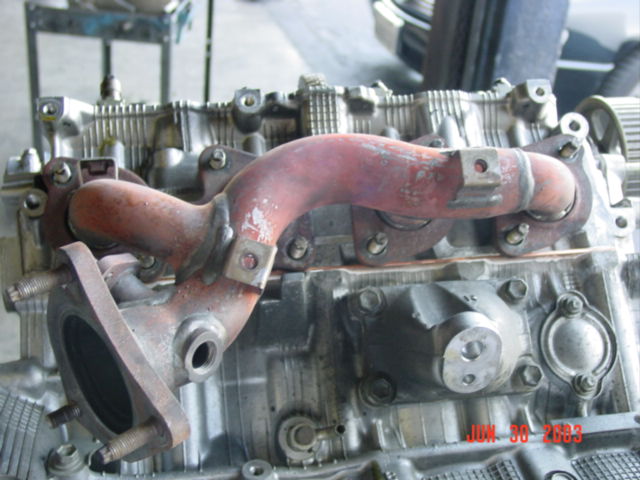

Bottom view of the left header with O2 sensor opening

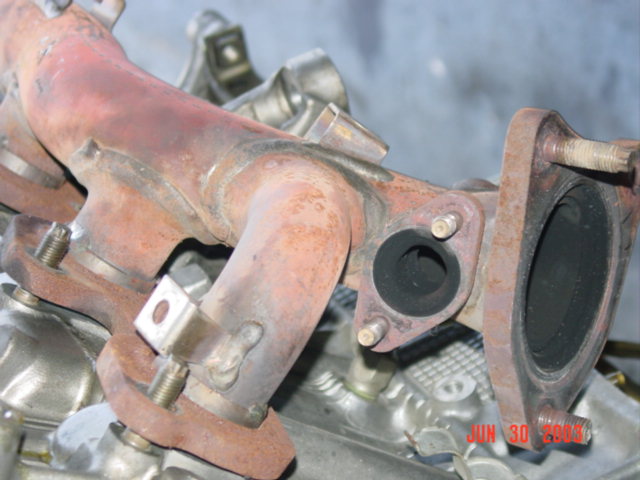

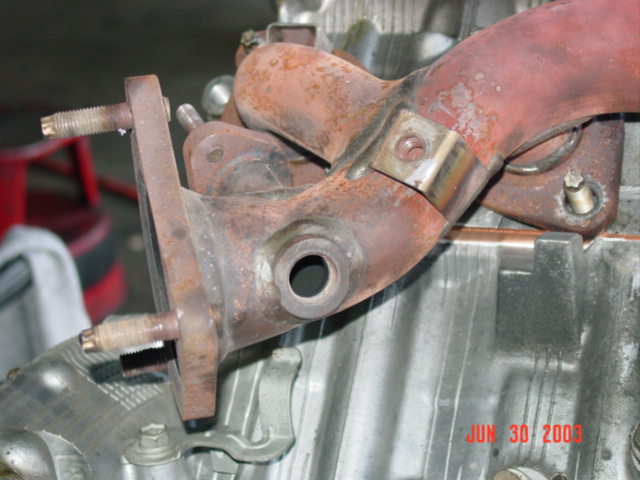

A closer look at the left header with O2 plug and the flange

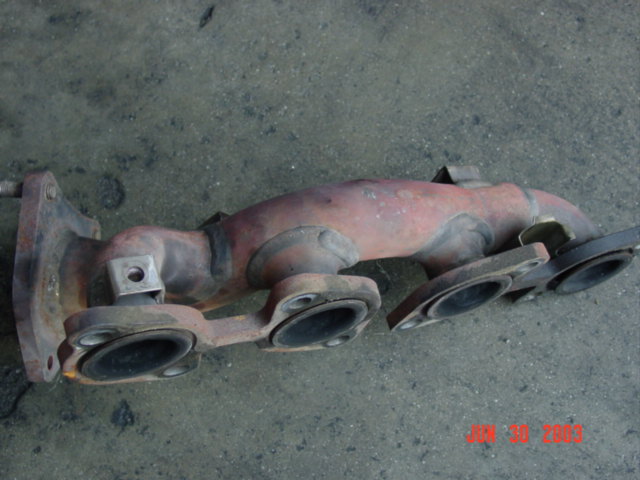

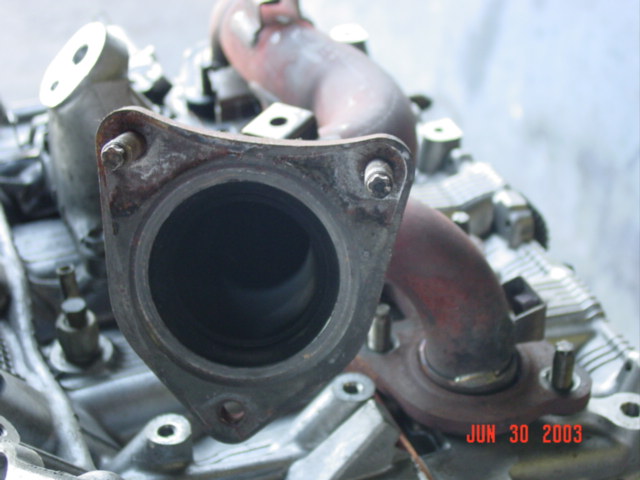

Direct view of the header opening. Not back for stock flow, but will require larger opening with FI

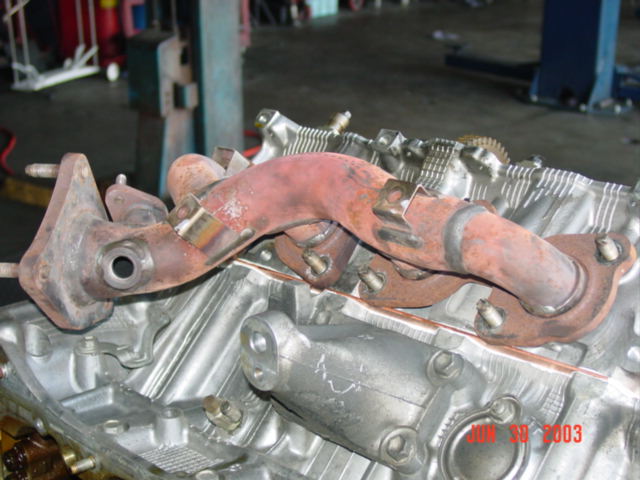

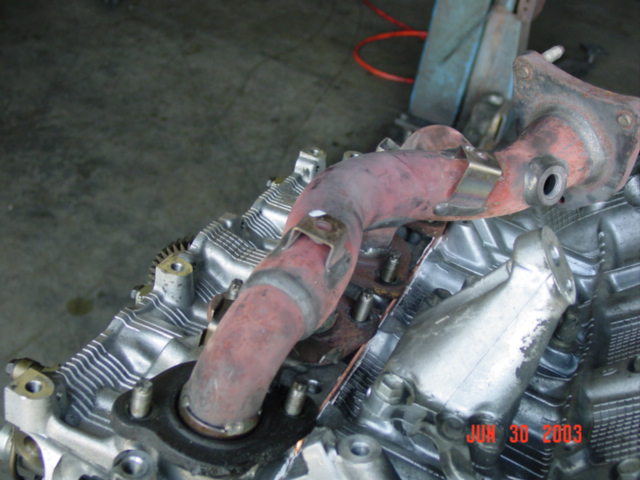

Notice the mandrel bend steel tubes with moveable exhause flanges.

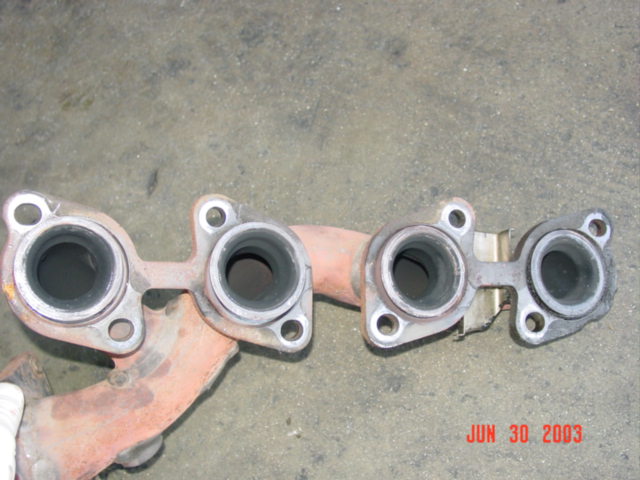

There are two banks of flanges per header. They can be turn upside down for turbo use.

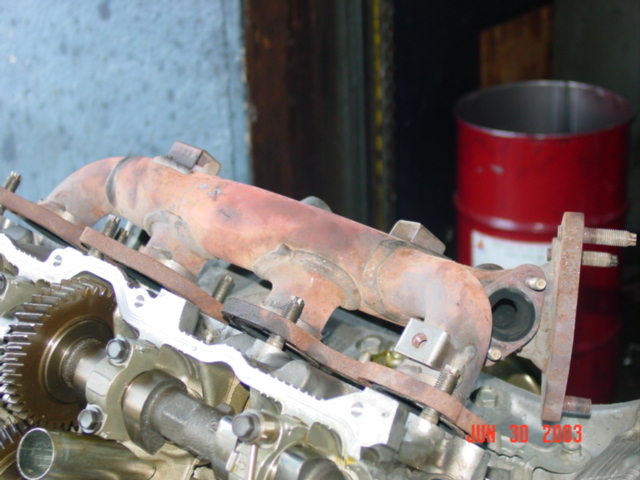

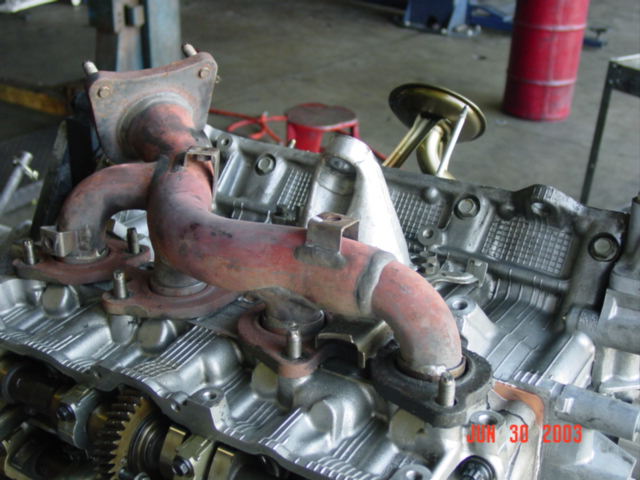

The long block is rotated and the left header is sitting on it

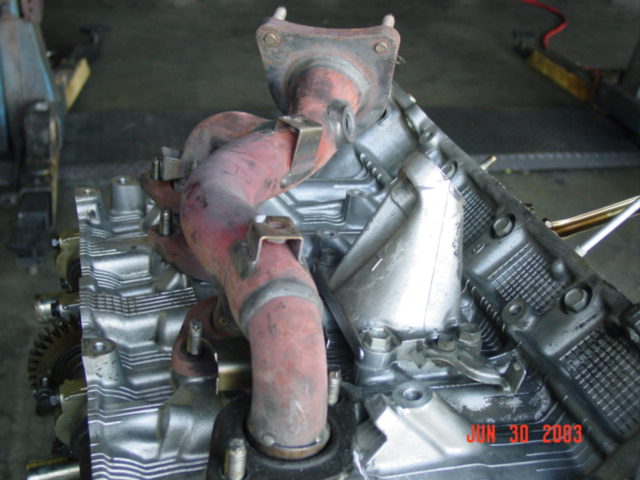

Front view of the left header
More view of left header

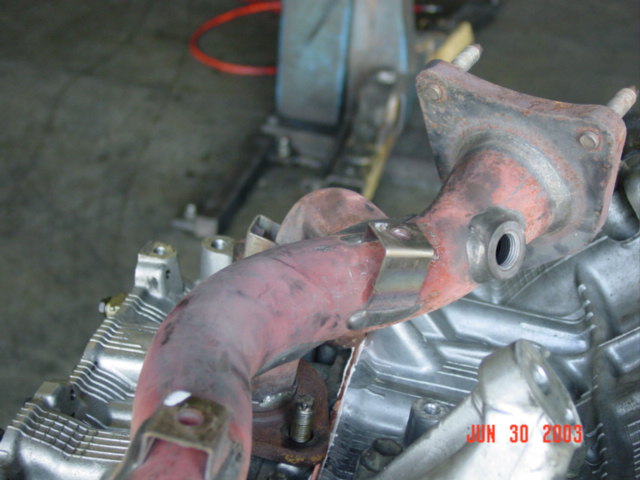

Different angle viewing the O2 sensor. Its great for some of you trying to make a high flow header.
The driver side header is placed on the floor for better view.
The exhaust gas passes through here.
Still the left header
This is the right header or extractor with EGR outlet
Very similar to the left header
EGR opening from the right header

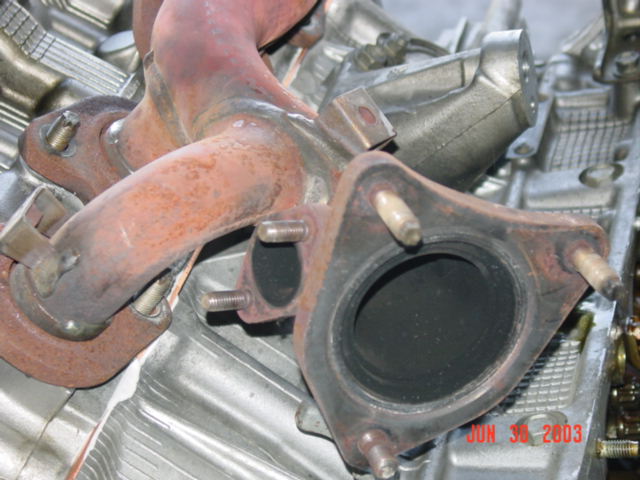

A closer look at the EGR
Placing it on the 1UZFE long block
Frontal view for the right header.
Right header with O2 opening in the bottom of the header
This where the O2 sensor goes on the right side

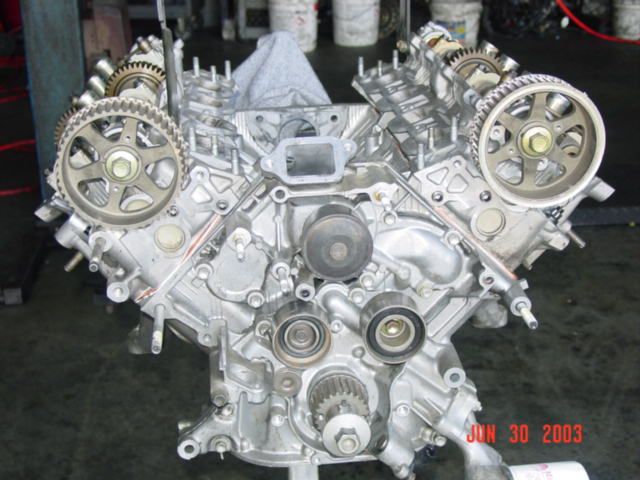

My decompress engine with ARP studs and .093″ copper head gaskets with special seal. This engine have about 40k miles. Its very low and in great shape. Got it for $450
