Hi Danny,

Have been playing around with motorbikes the last few weeks so only a little progress on the Surf.

At the moment I am sussing out the fuel pump for the diesel tank. Have got a Walbro internal one, just need to seal where the wires go through the lid. Also in the process of getting a fuse box and some relay bases for main wiring.

Anthony.

Anthony

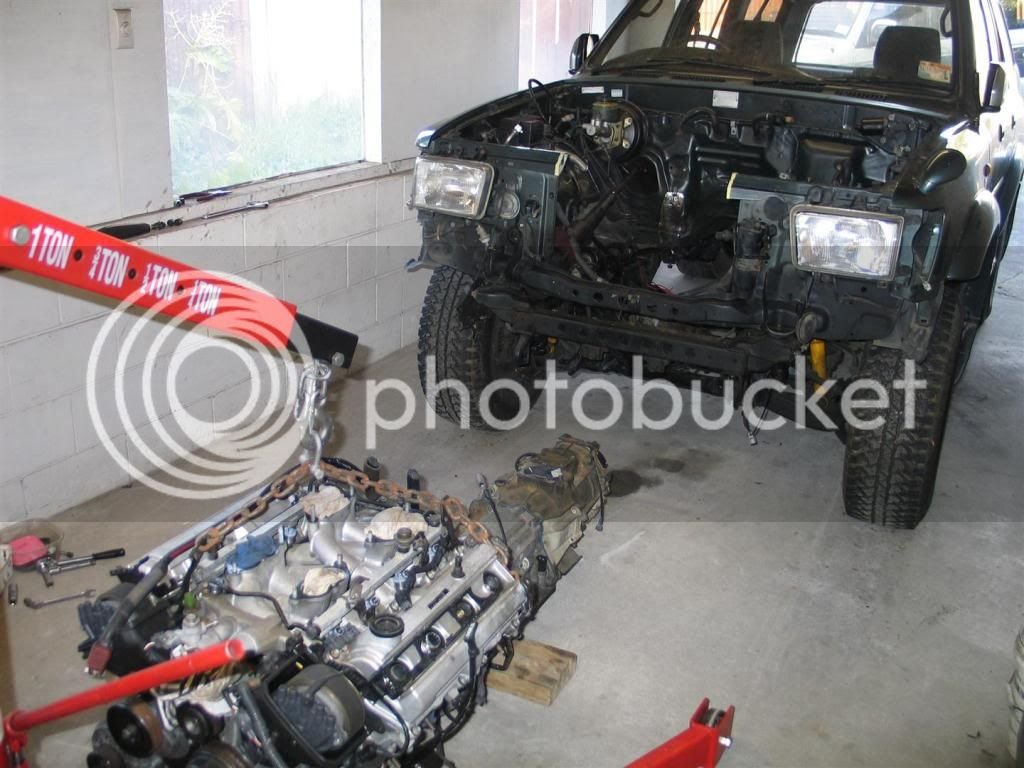

managed to get the engine out and am currently sorting out the gear box and TC just cut the out put shaft from the lexus. loking to put a 1 1/2" body lift on as other say it gives more room in pushing the engine back and more rrom for rad etc. are you going to do this or do you already had a lift on?


Anthug

New Member
Messages
33
Location
New Zealand
More news

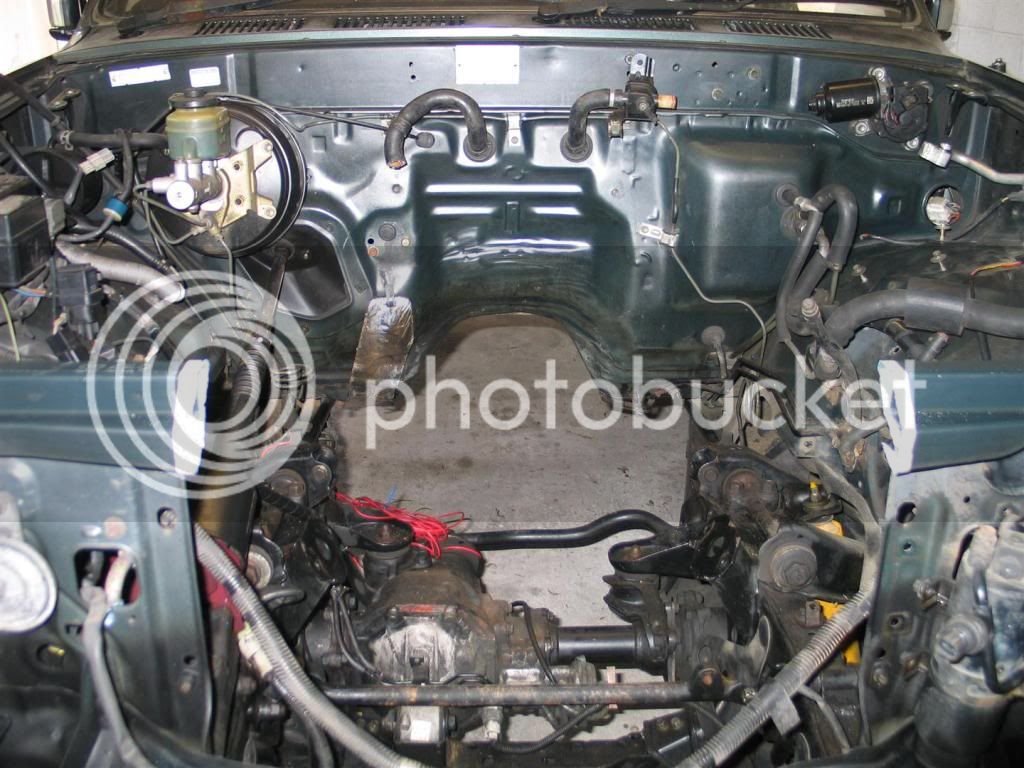

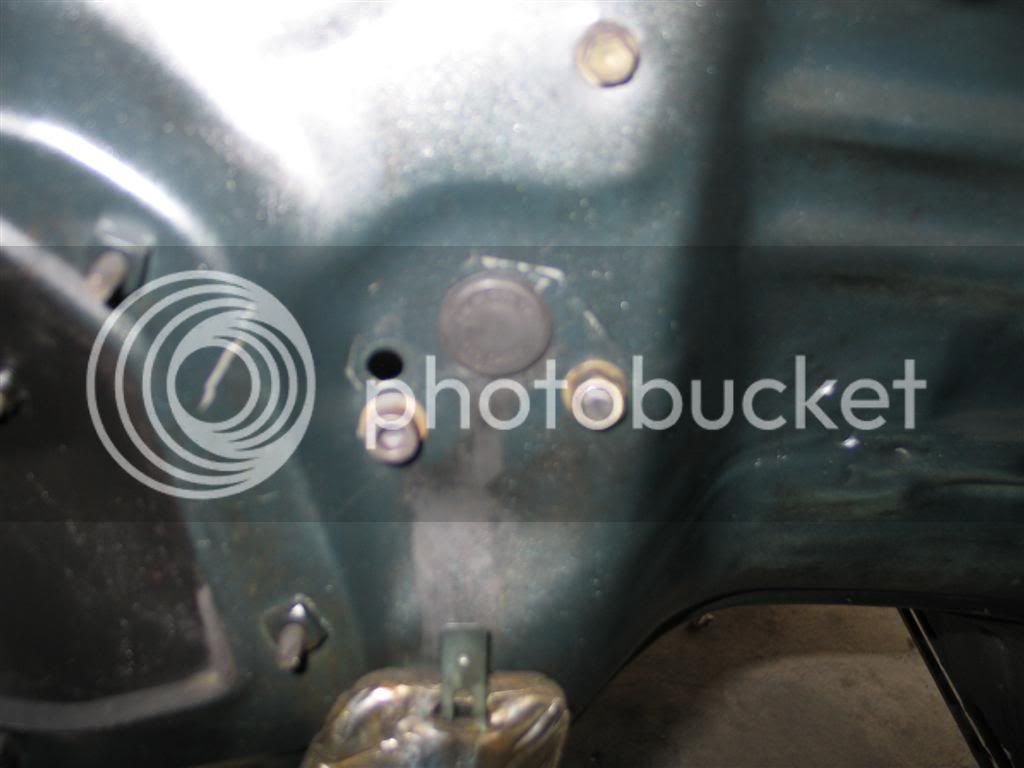

V6 handbrake fitted

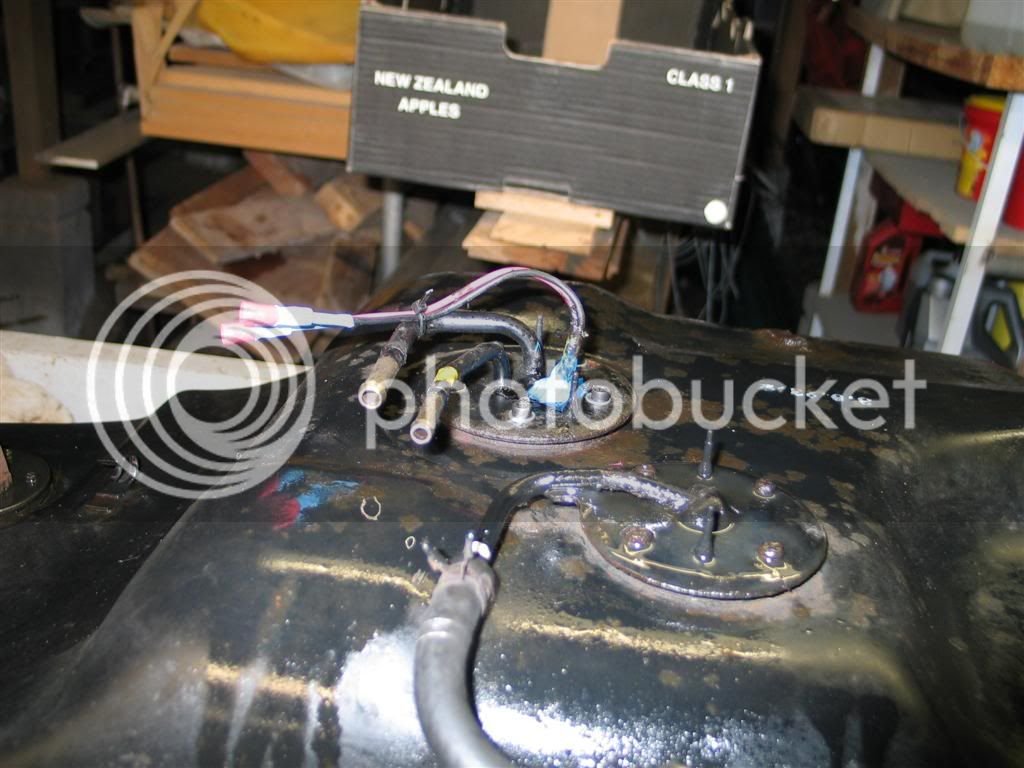

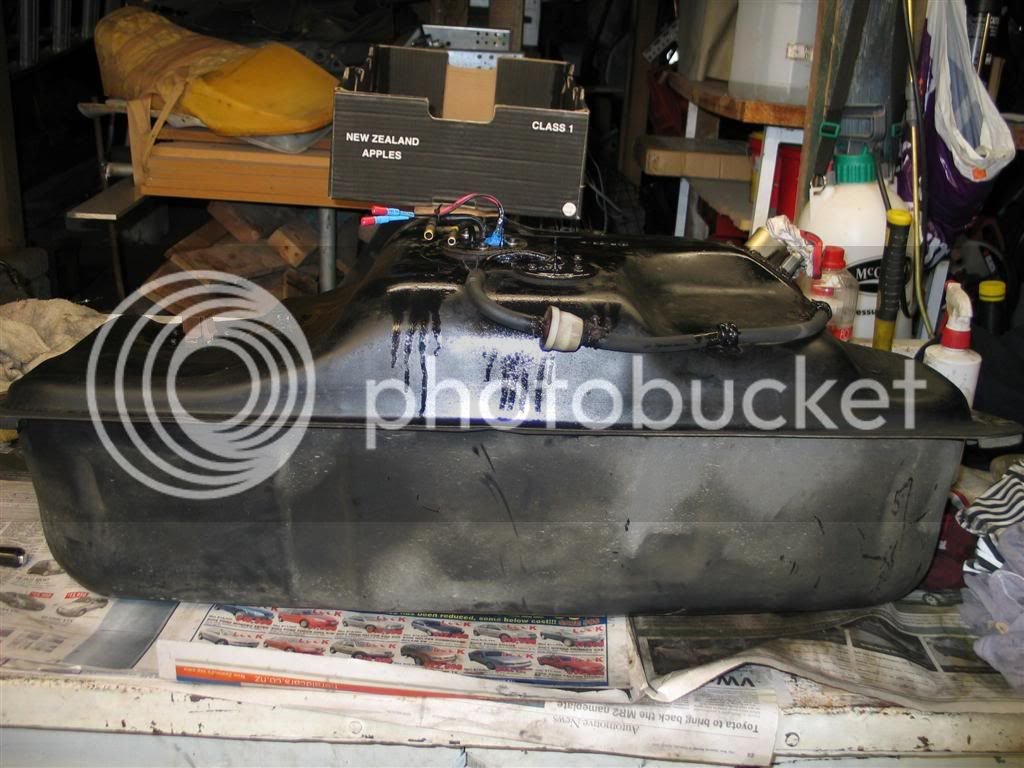

Internal fuel pump fitted to diesel tank and bolted back into vehicle.





Mazda MX5 (NA) fuel filter installed close to tank outlet.



Engine ready for new timing belt and wiring up.



dannyboy77

Member
Messages
57
Location
wirral merseyside UK
hand brake looks great well cant see it so great its out the way! ended up doing the 2" body lift lots of room now! what exhaust manifolds do you have on? they arent the standard LS400 ones. do have to confess it is a little tight around the steering with the standard exhaust manifolds!

what you doing about the sump i am getting one fabricated as the steering damper is in the way!


Anthug

New Member
Messages
33
Location
New Zealand
Exhaust manifolds are standard early LS400, just had a little taken out of the runners.

Keeping the front sump and fitting replacement steering damper.


Anthug

New Member
Messages
33
Location
New Zealand
Engine Parts Replacement

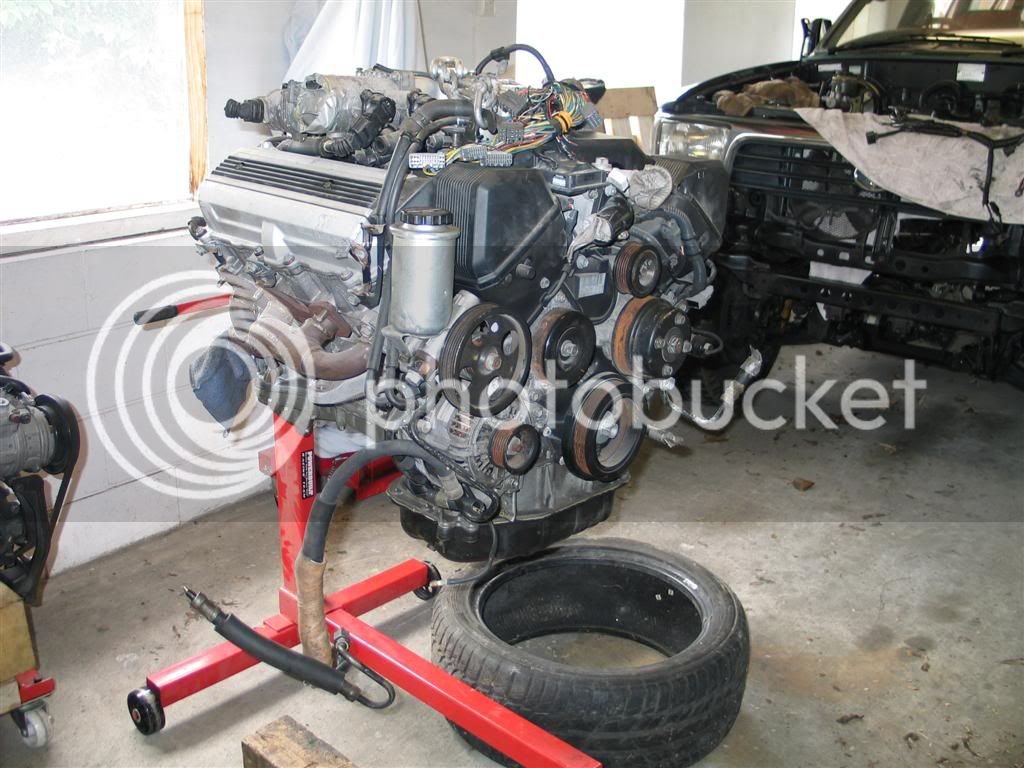

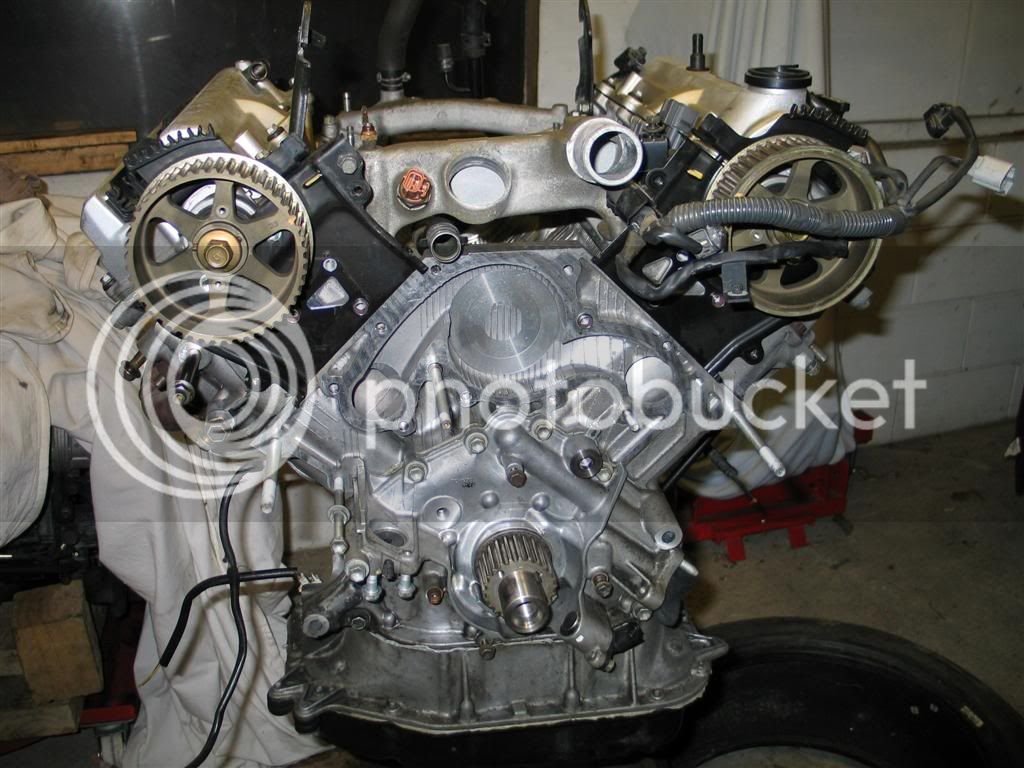

Replaced the following parts on engine:

- Water Pump
- Cam Belt
- Tensioners
- Idlers
- Spark Plugs
- Rotors & Caps
- Starter Motor contacts
- Accessory Belt

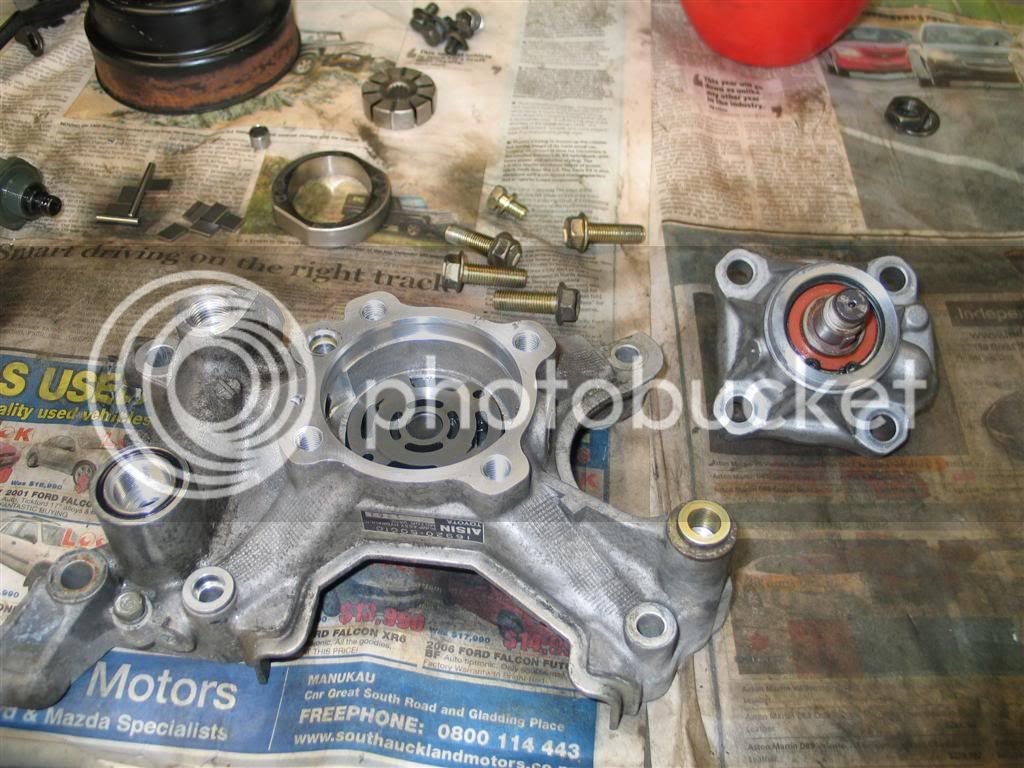

Removed gears from inside of Hydraulic Fan Pump:


Air Conditioning Pump Fitted (wifes request)

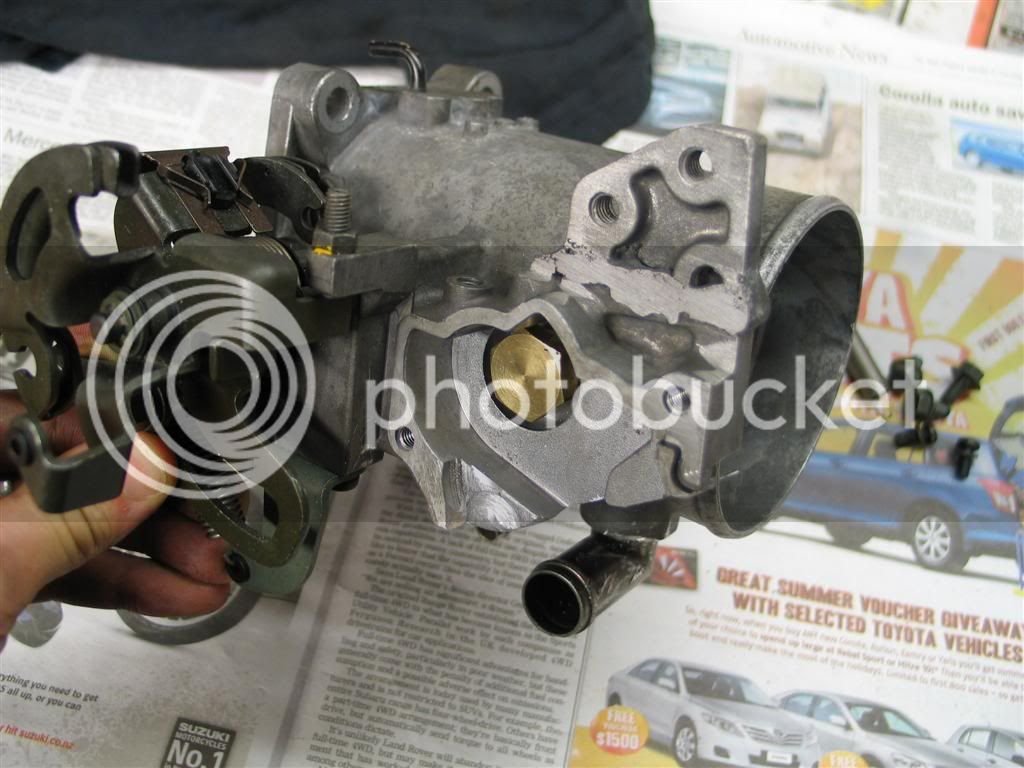

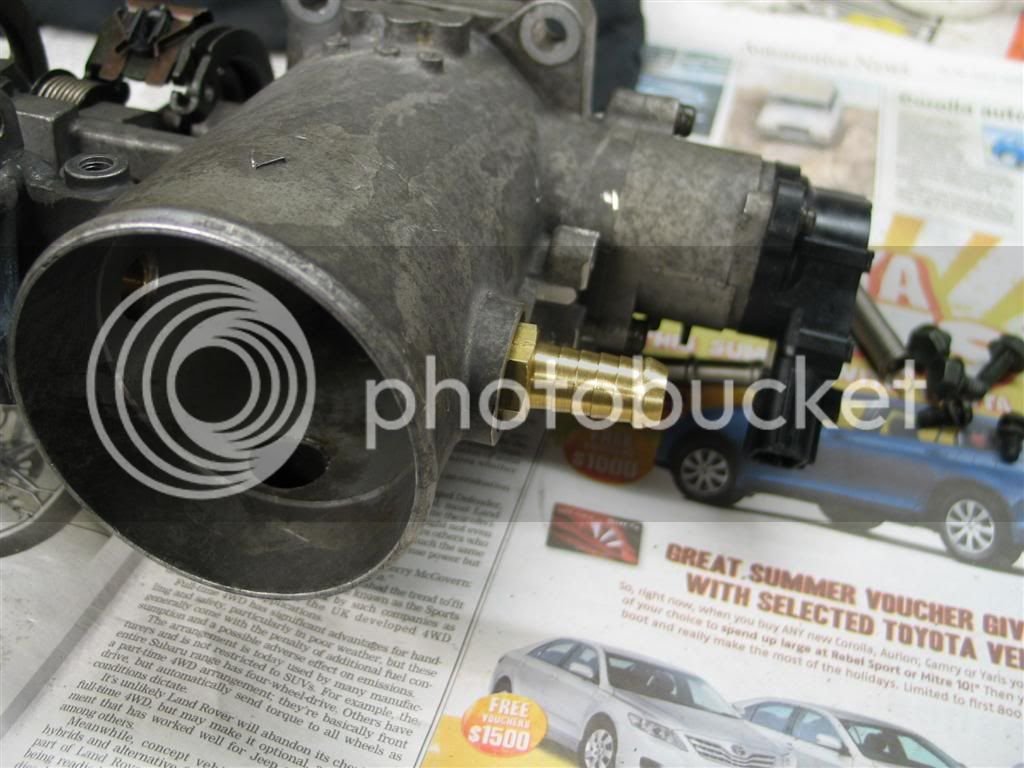

Removed Traction Control parts from Throttle Body.

Still sorting wiring.


Anthug

New Member
Messages
33
Location
New Zealand
Images Back up

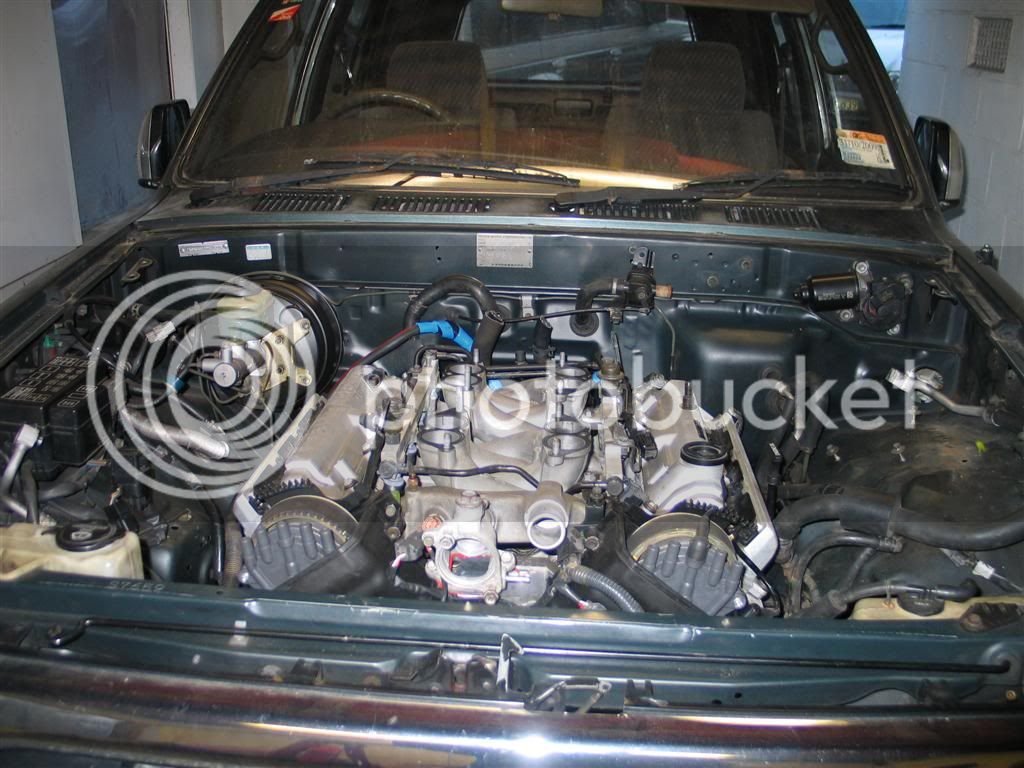

Finally have time to get back to working on the Surf after working on other vehicles/boats.

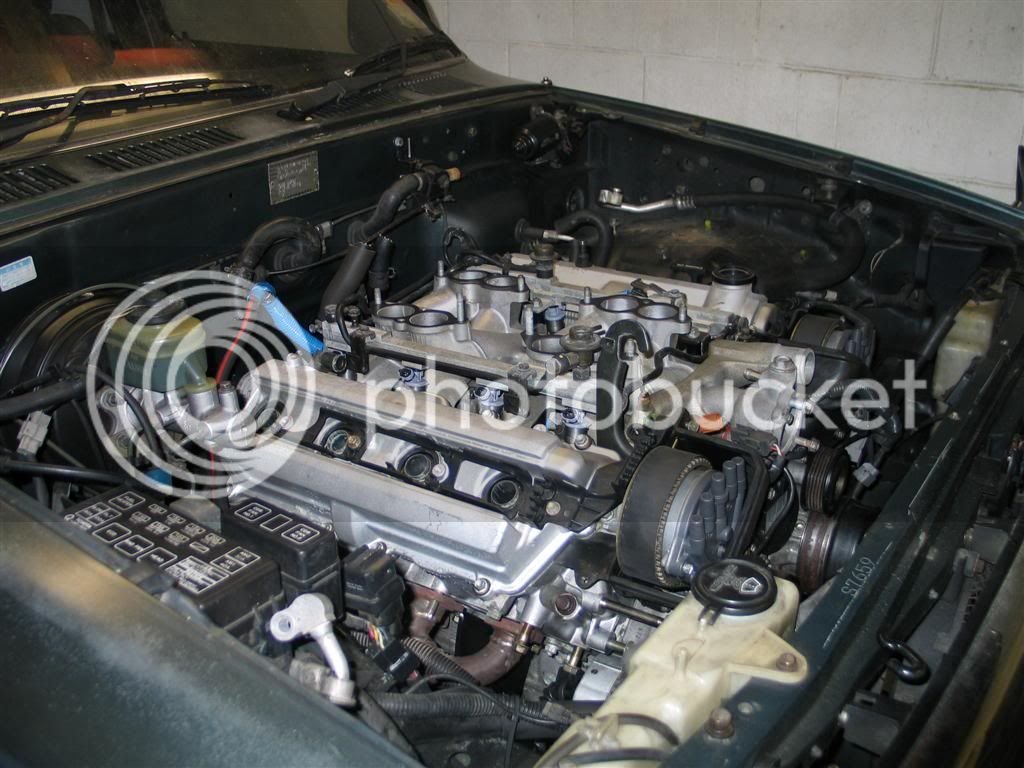

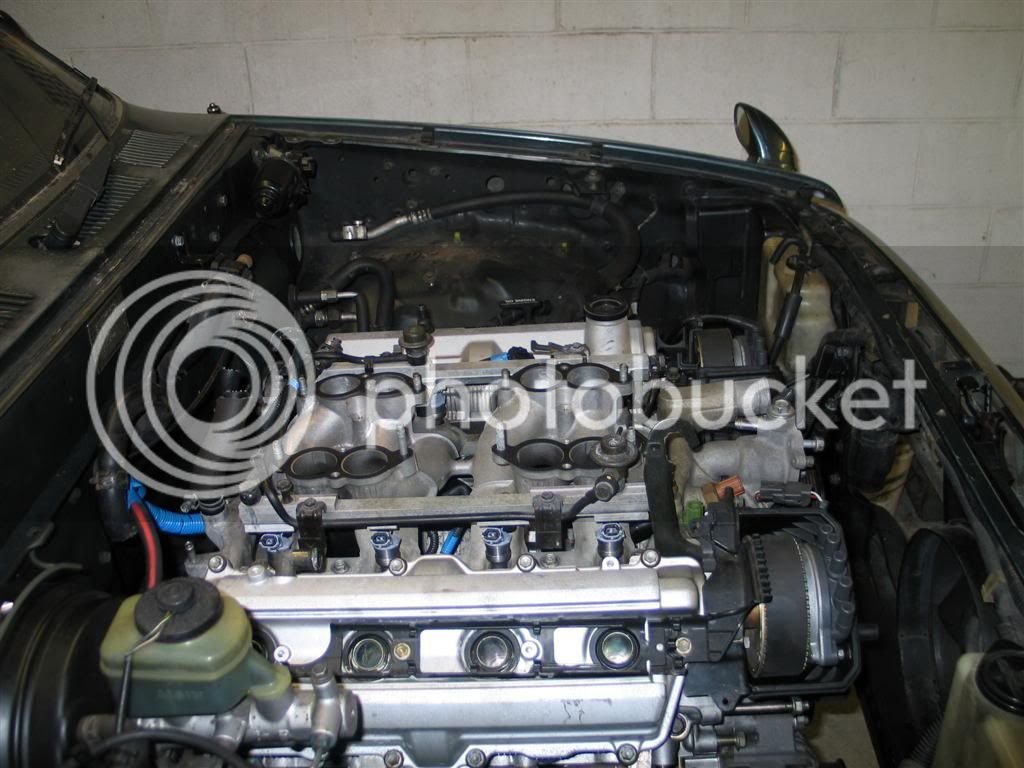

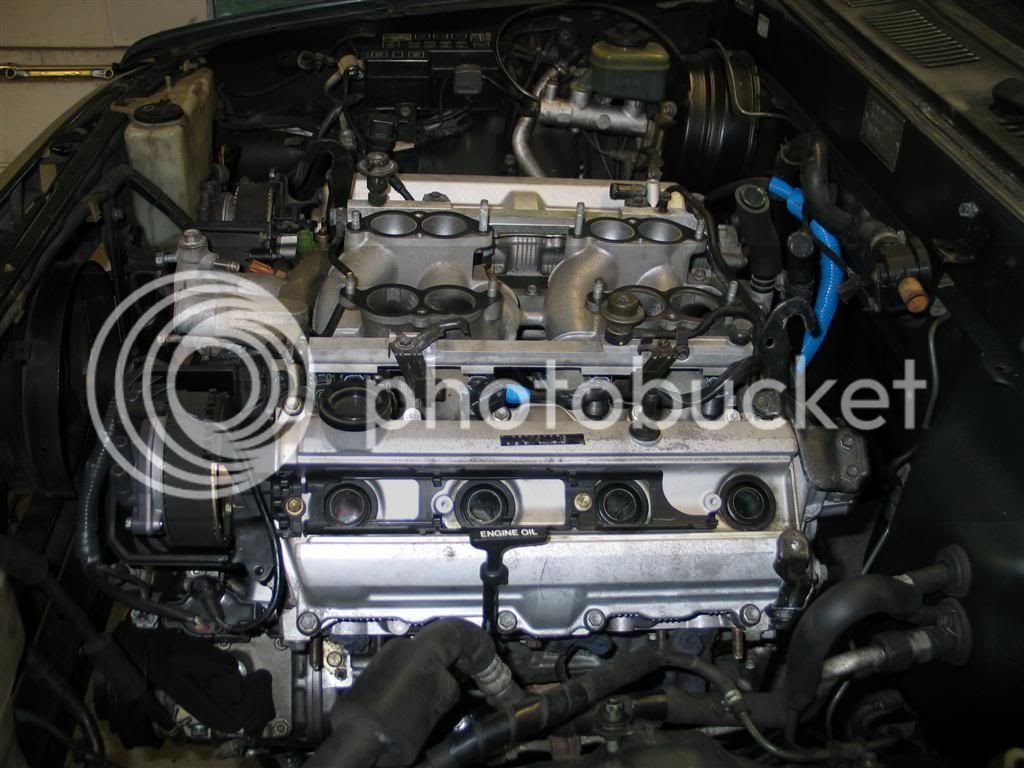

Engine now in



Auto trans not mounted yet so is leaning back a bit.







Still playing with wiring.

Anthony


Anthug

New Member
Messages
33
Location
New Zealand
Joing Surf Loom with Lexus Loom

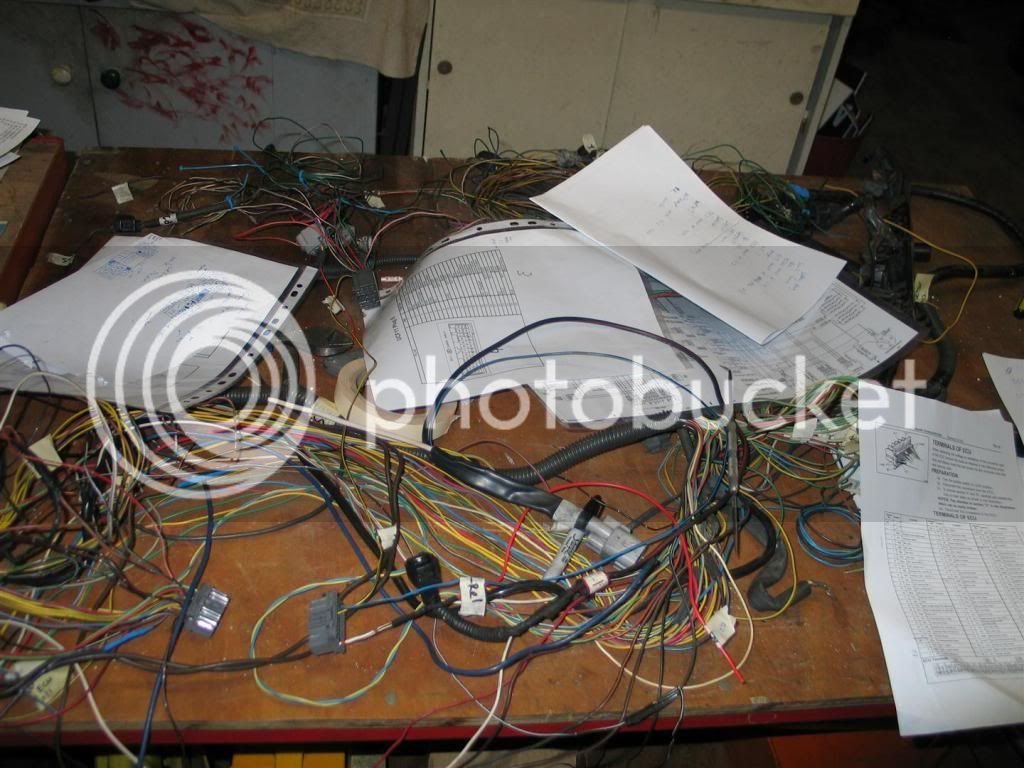

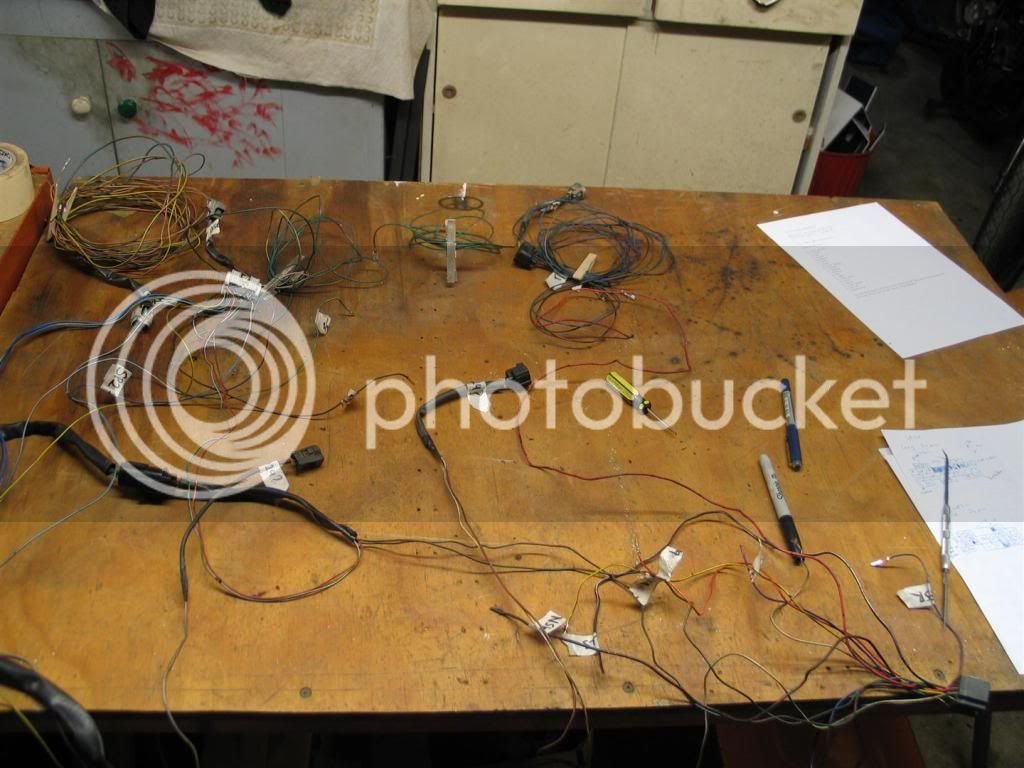

Spent some more time on wiring. After lots of searching and reading have matched up the Surf loom & Lexus loom.

Plan is to use Glow plug relay as Fuel pump relay and existing Surf Main EFI & Starter relay.

Anthony


Anthug

New Member
Messages
33
Location
New Zealand
Trans Mounted & Driveshafts in

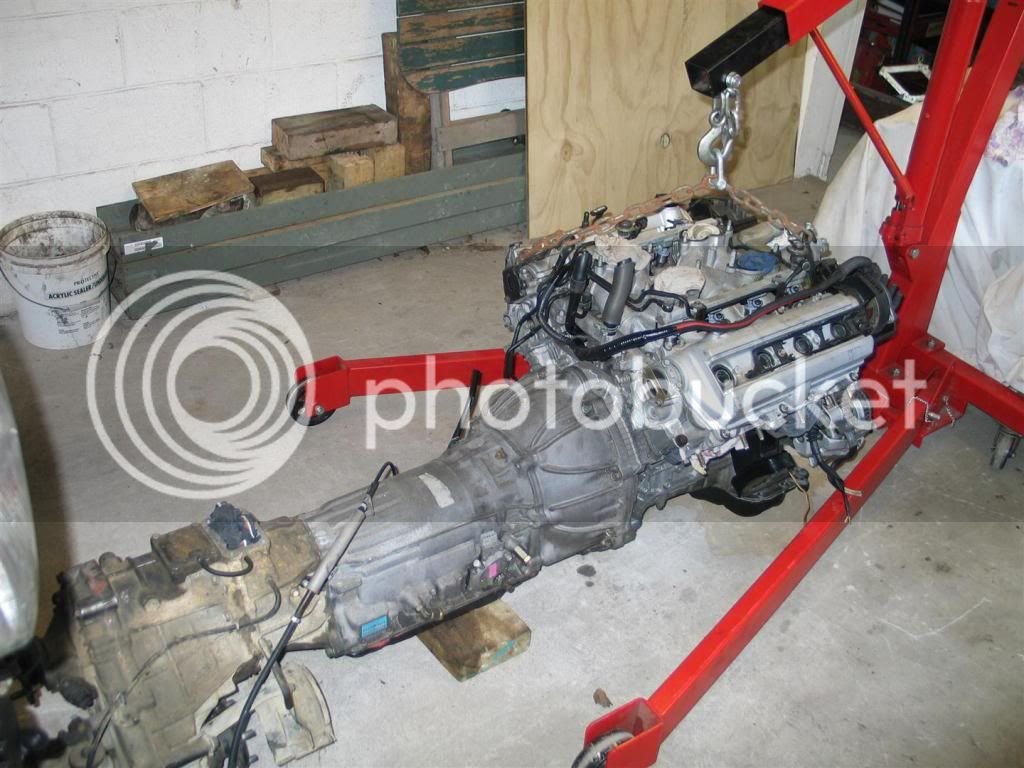

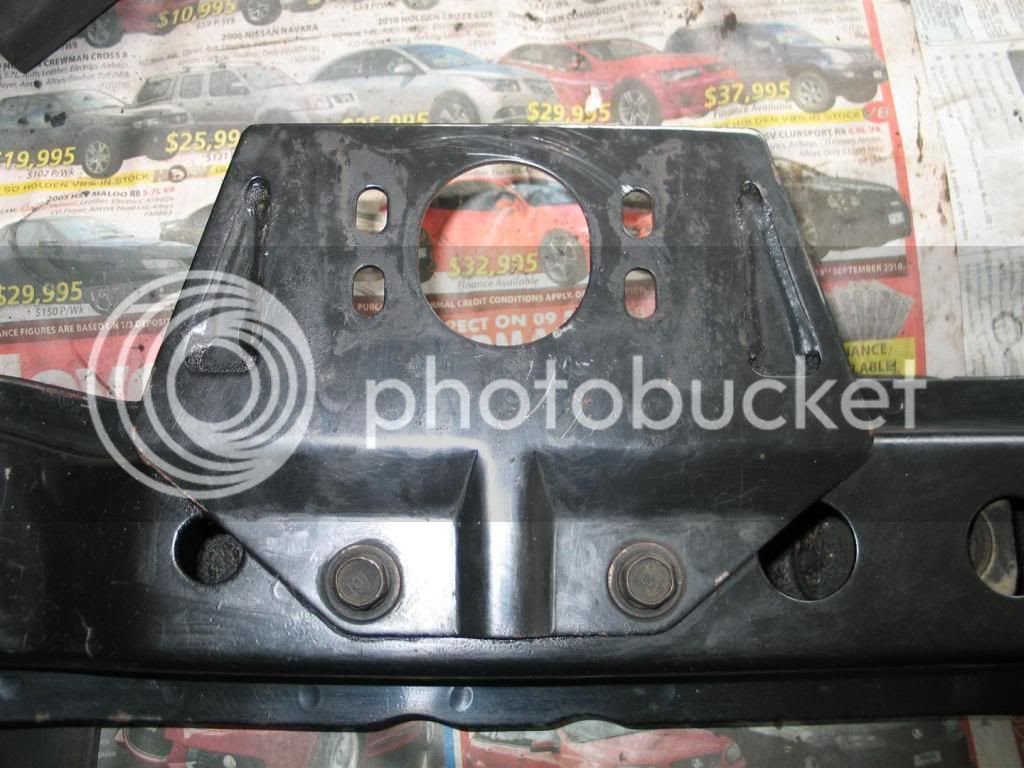

Installed the Transmission & Transfer Case. Transmission mount required modification as engine is mounted 30mm forward.

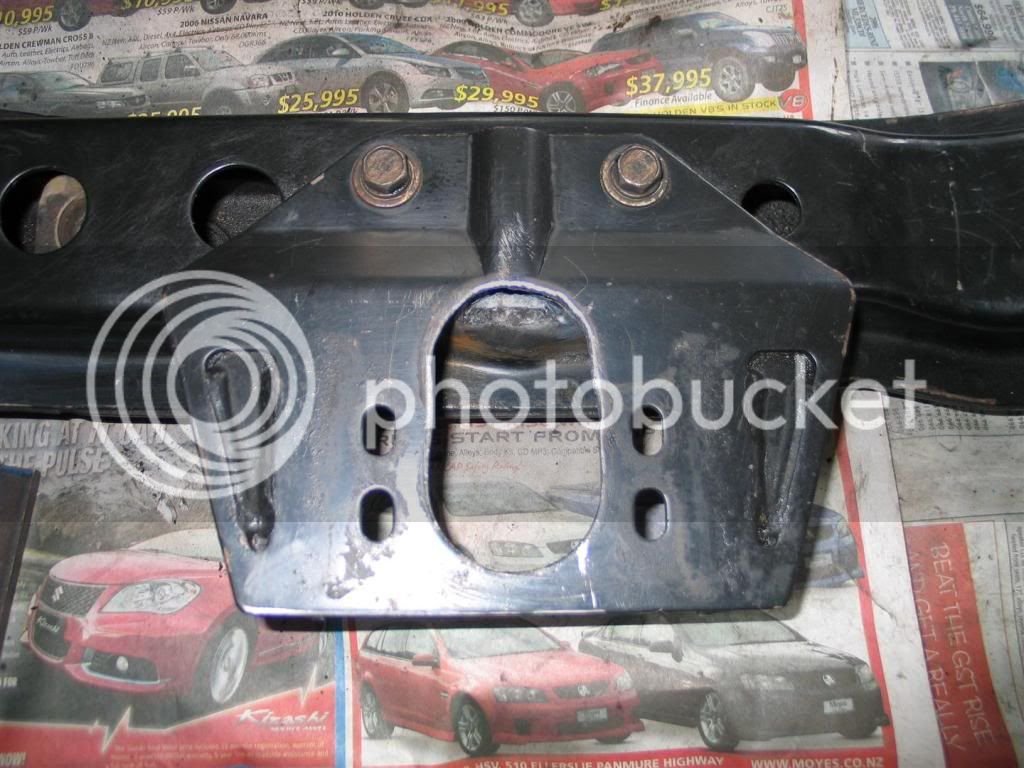

Holes sloted and new holes drilled (not shown)

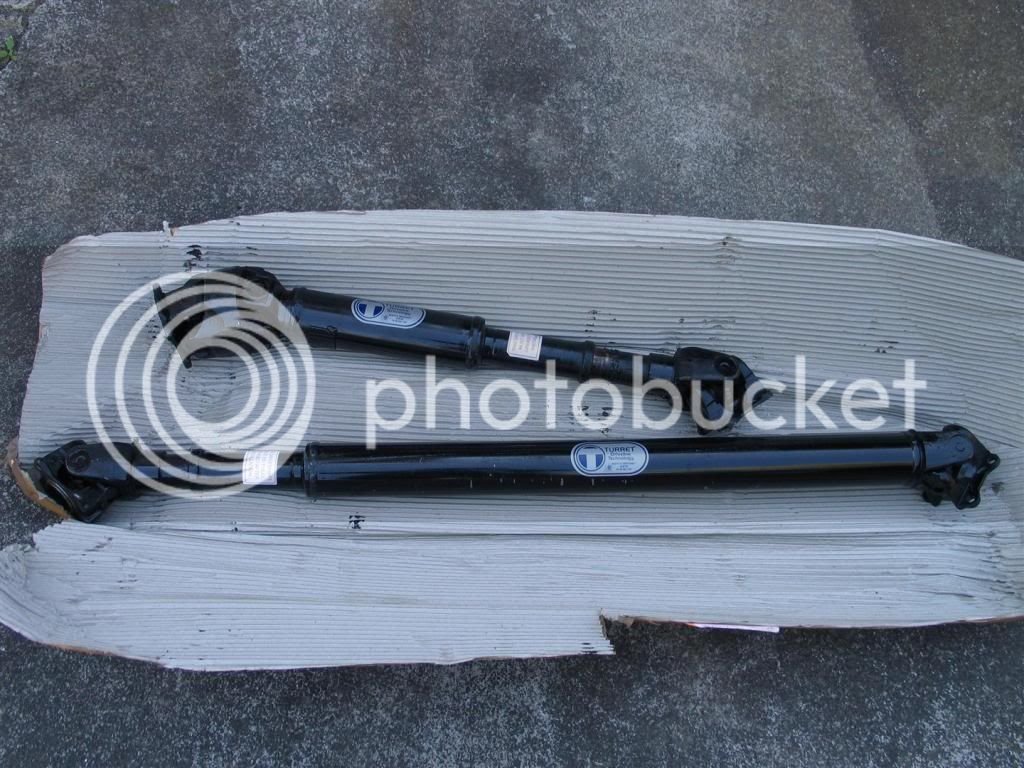

Front Driveshaft shortened by 30mm & Rear lengthened 30mm.
