Fabrication work from a Twin-Turbo 4.6L DOHC 32-valve engine full tube drag car!

[FoPar]

was chatting with tuf_lux and XR8tt and they were saying maybe throw up some of the fab work that i have had done on my full tube chassis. the engine is not a Lexus/Toyota but it's still a nu skool 32-valve 4.6L Ford modular which i am twin turboing, it has 2 x Garrett GT42R's, we are chasing around 17-1800hp with it. if ur interested in the build u can see it all herehttp://fullboost.com.au/forum/showthread.php?t=8160
all the fabrication work was done by GrooveRyder Fabrications http://www.grooveryder.com.auhe has worked on some tough cars, Gas Motorsports 2JZ Celica and Mr Mad's twin turbo Torana

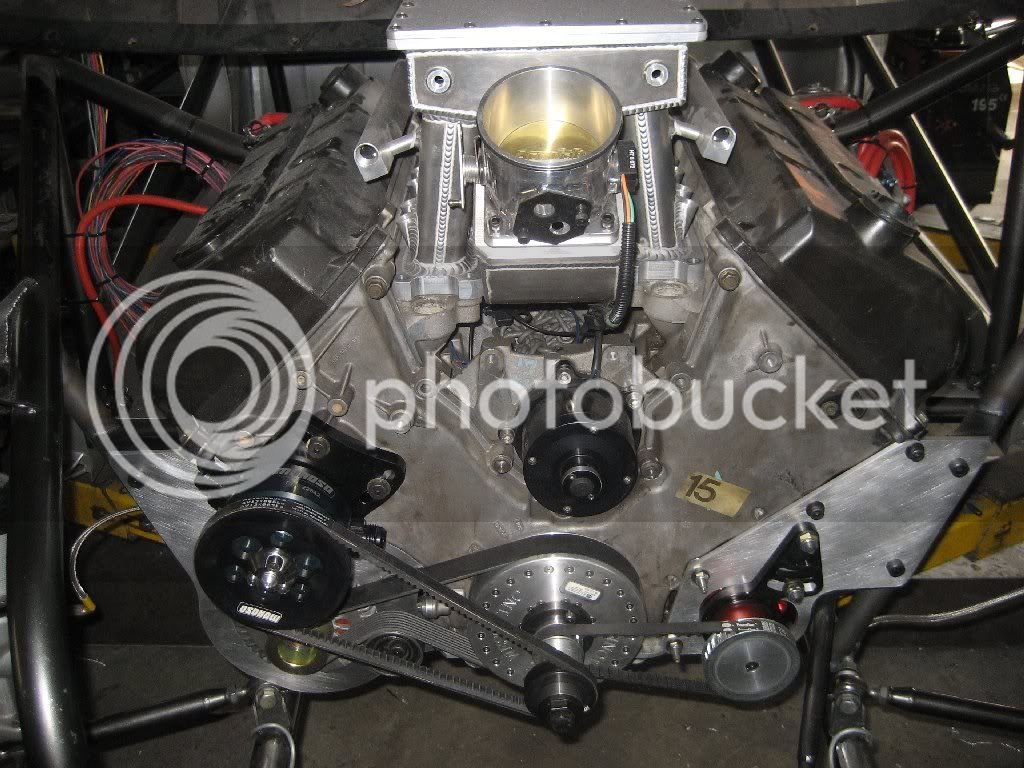

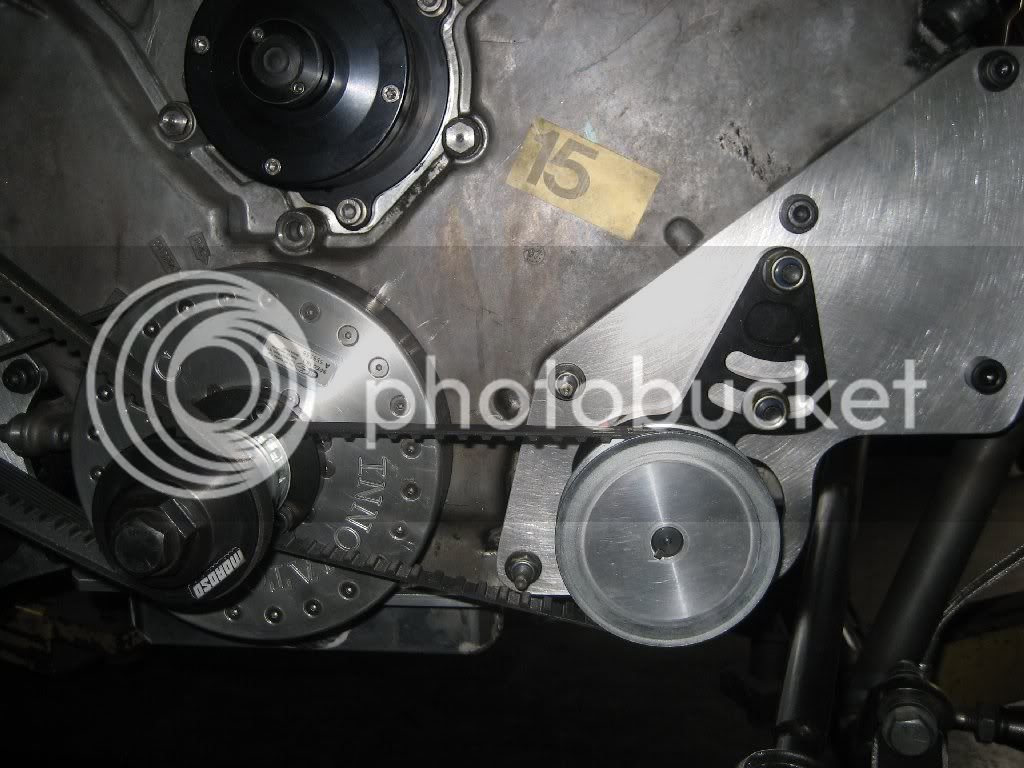

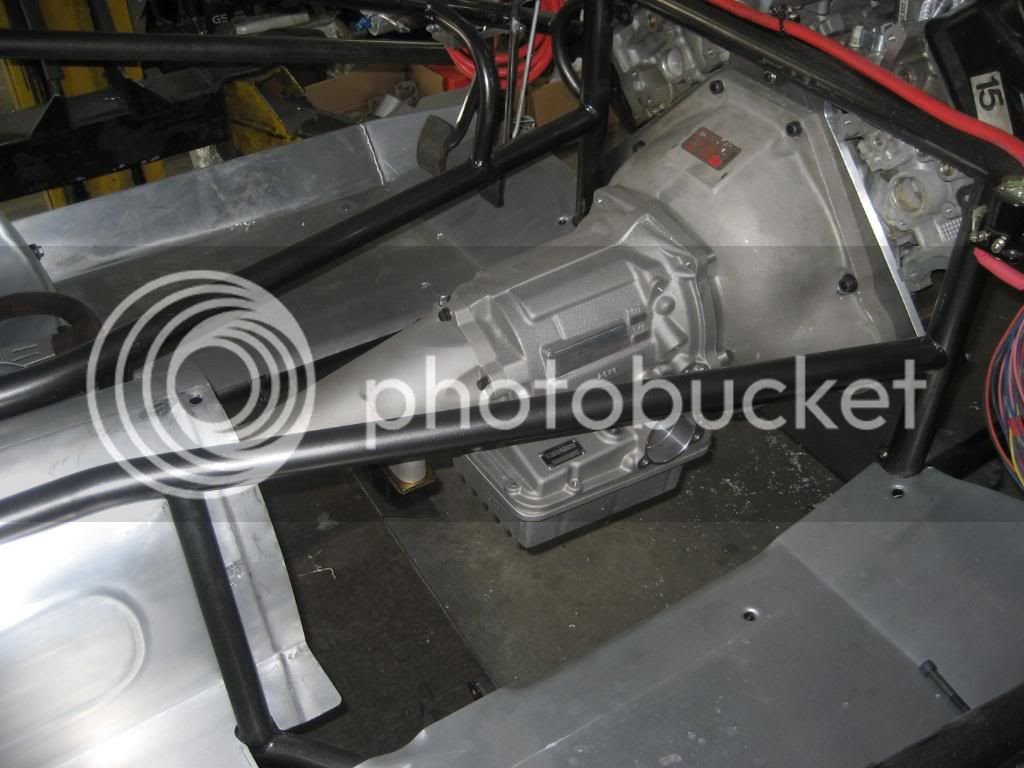

we started with the engine mounting, when it comes to everything Groovy (JAmes) is a bit of a perfectionist and goes to overkill, we went with a 14mm mid plate which is pretty much twice as thick as u would see being used. we did do a bit of playing around to get it all sorted at the front, but we found places to fit everything. the alternator went where the factory A/C goes as it wouldn't fit in the factory spot because of the intake manifold, and we cut out some of the timing cover to get the vacuum pump on.









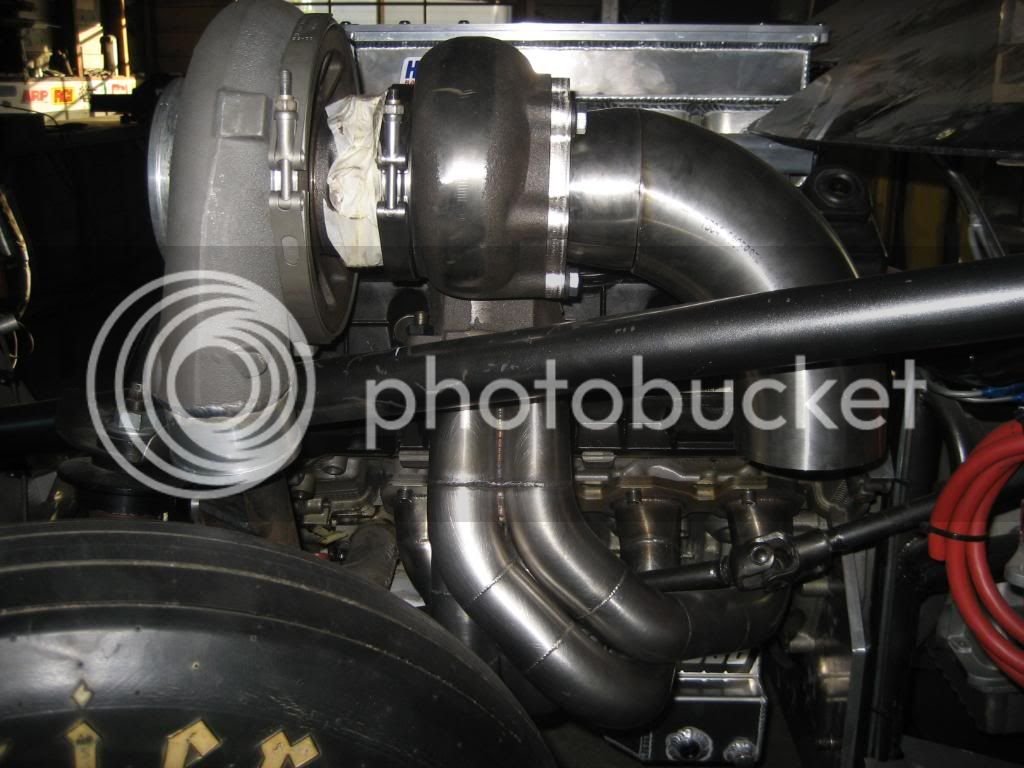

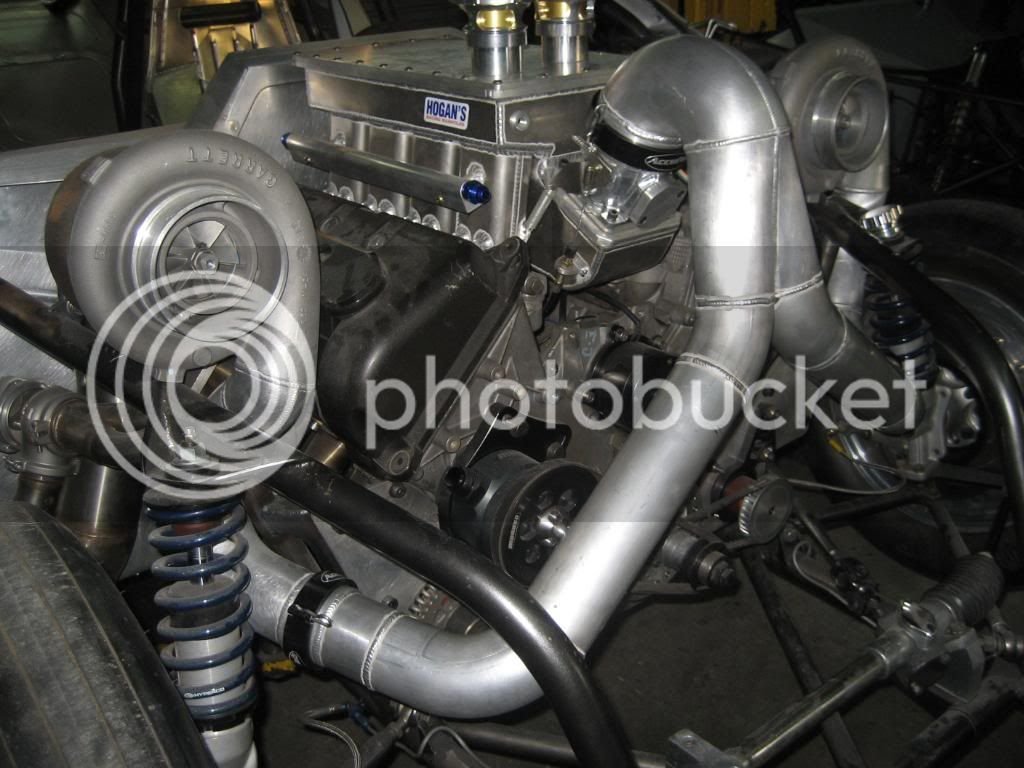

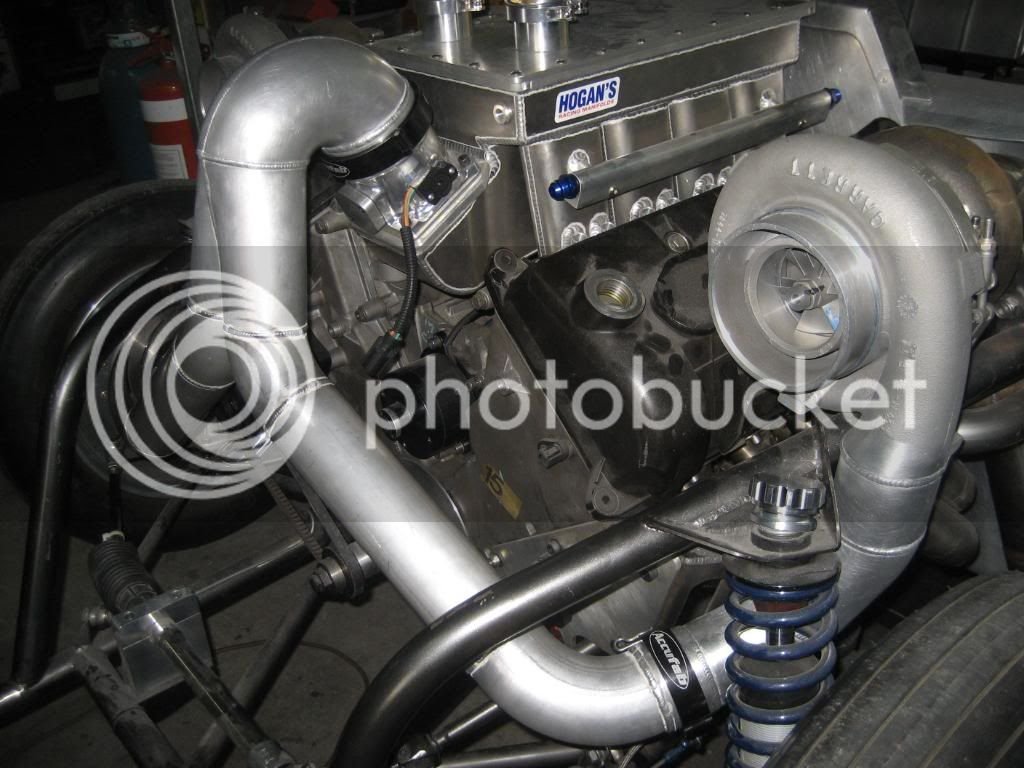

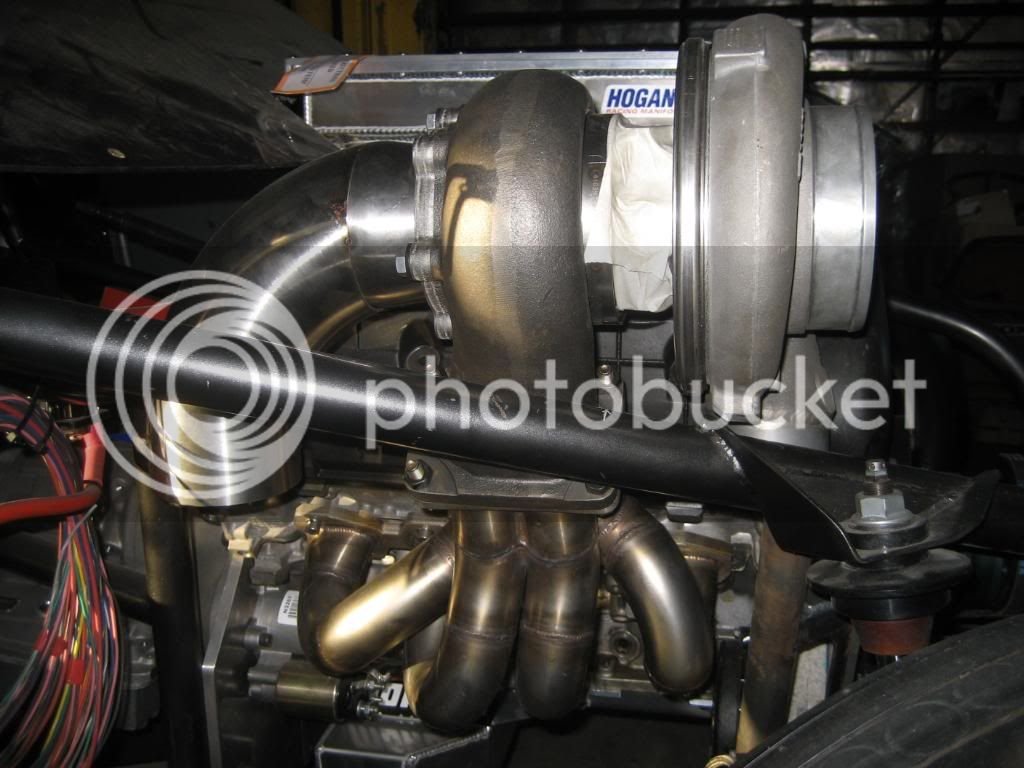

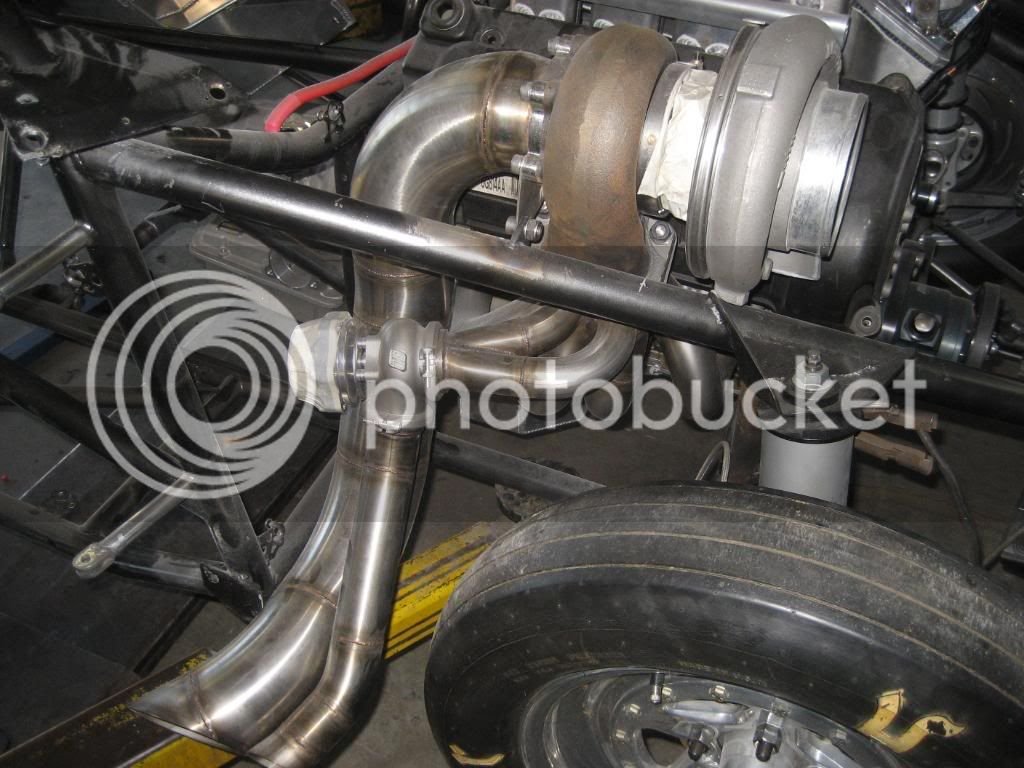

the turbo's are mounted to the actual chassis instead of the engine, provides alot more support



[FoPar]

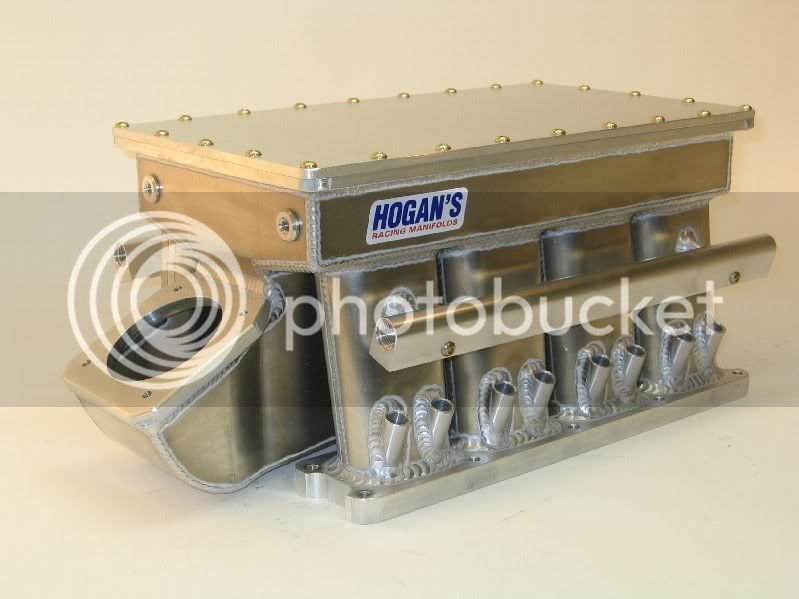

the intake manifold, all i can say is WOW inside and outside is immaculate, probably a bit unusual to see its a bottom entry intake, air comes in from the bottom and flows to the top, each runner flows the exact same cfm


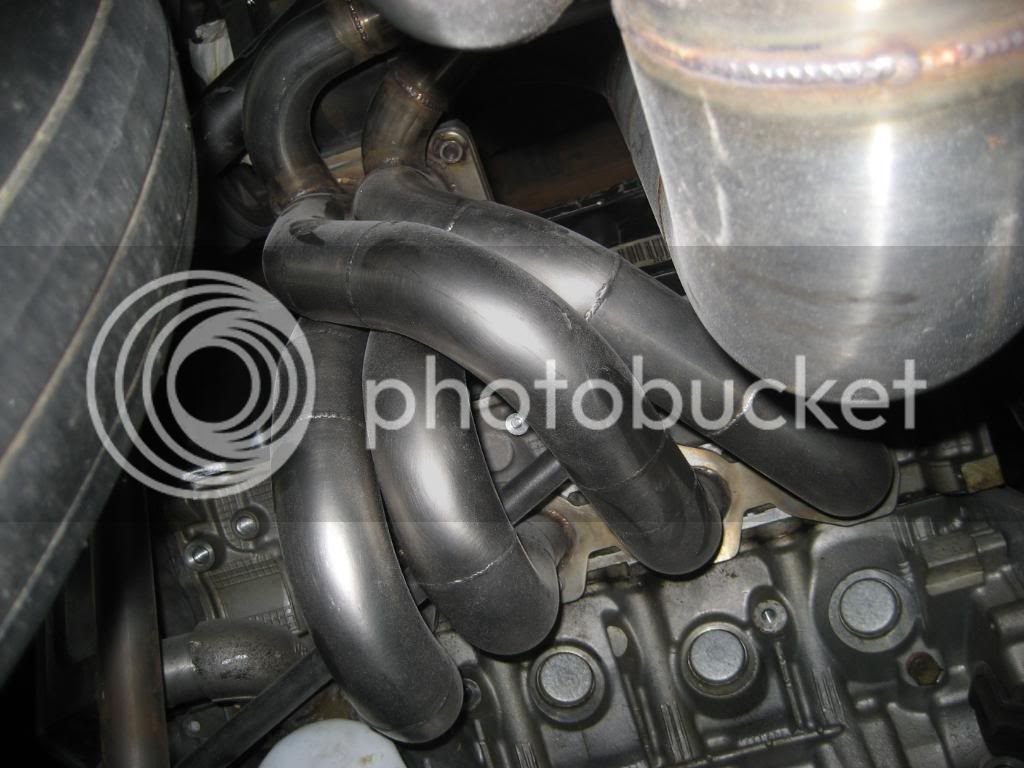

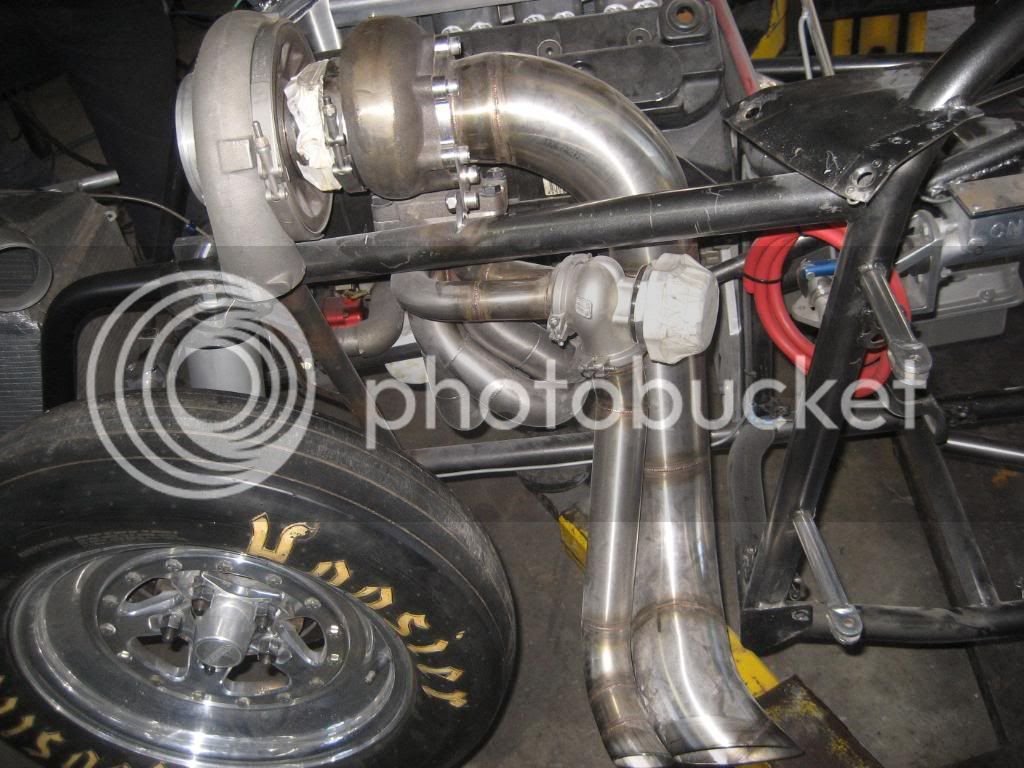

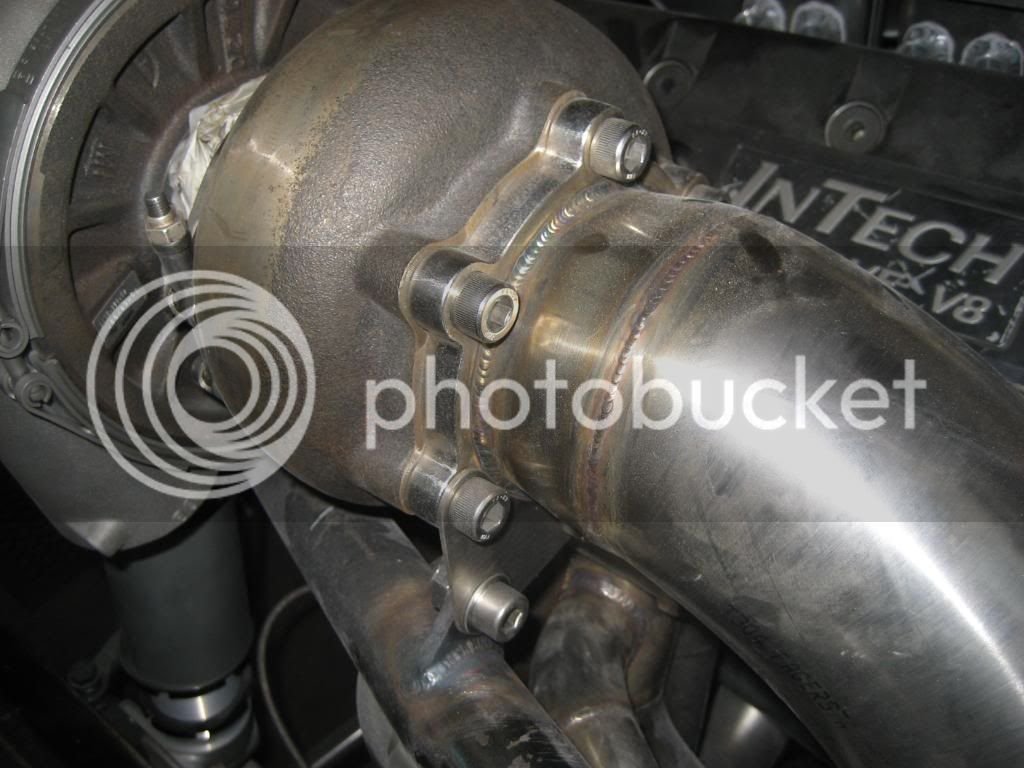

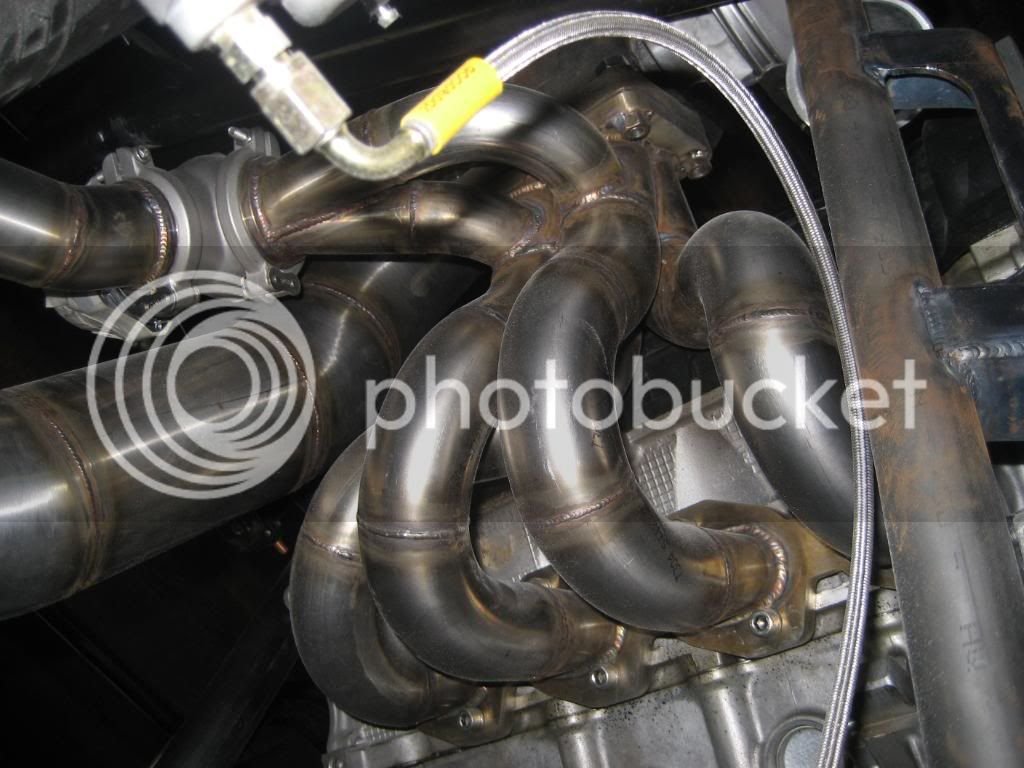

exhaust manifolds




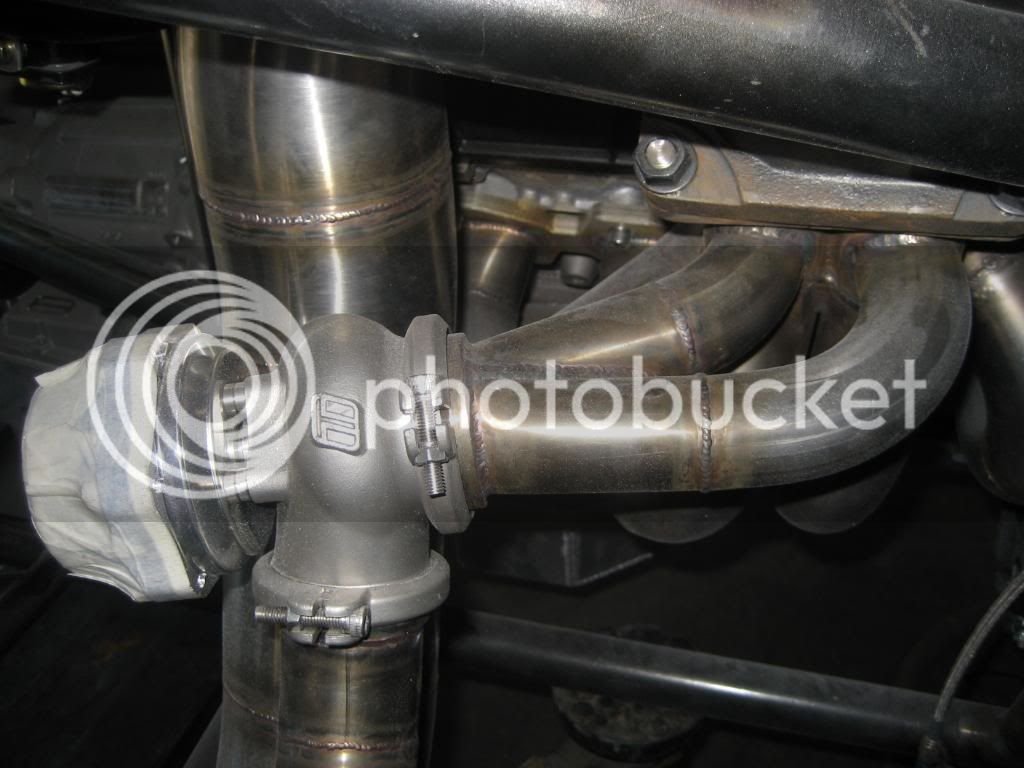

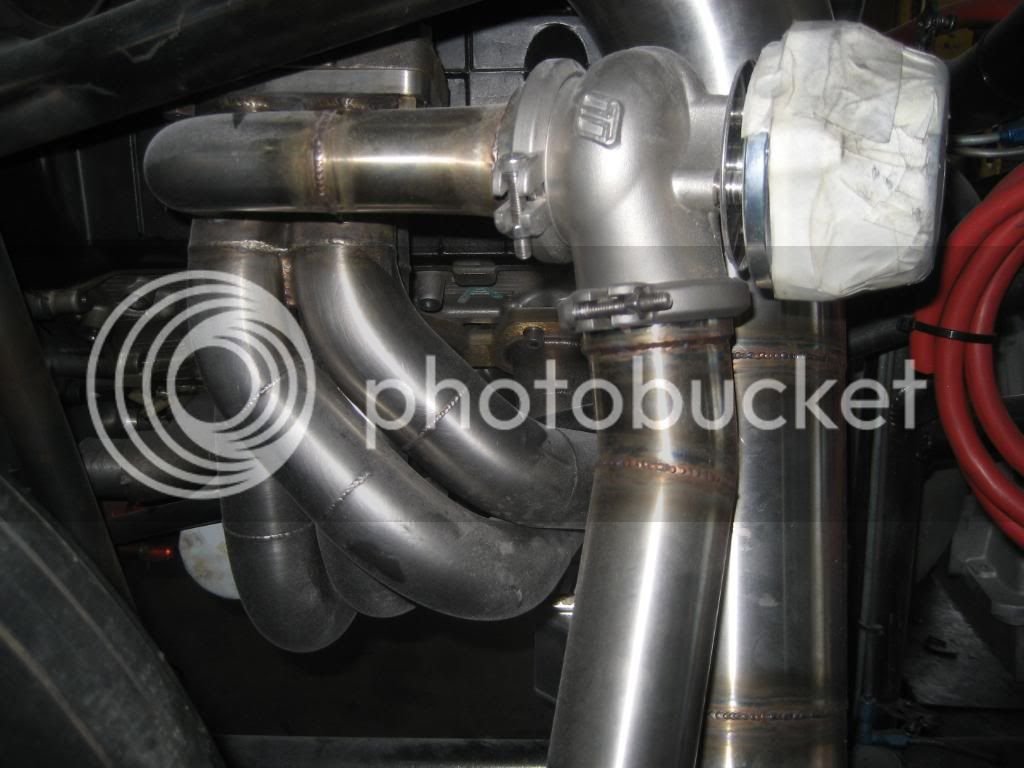

we went with a 4'' dump pipe and the wastegate pipe dumps out beside it, i think it looks pretty good



[FoPar]

now we had a few other issues with the chassis

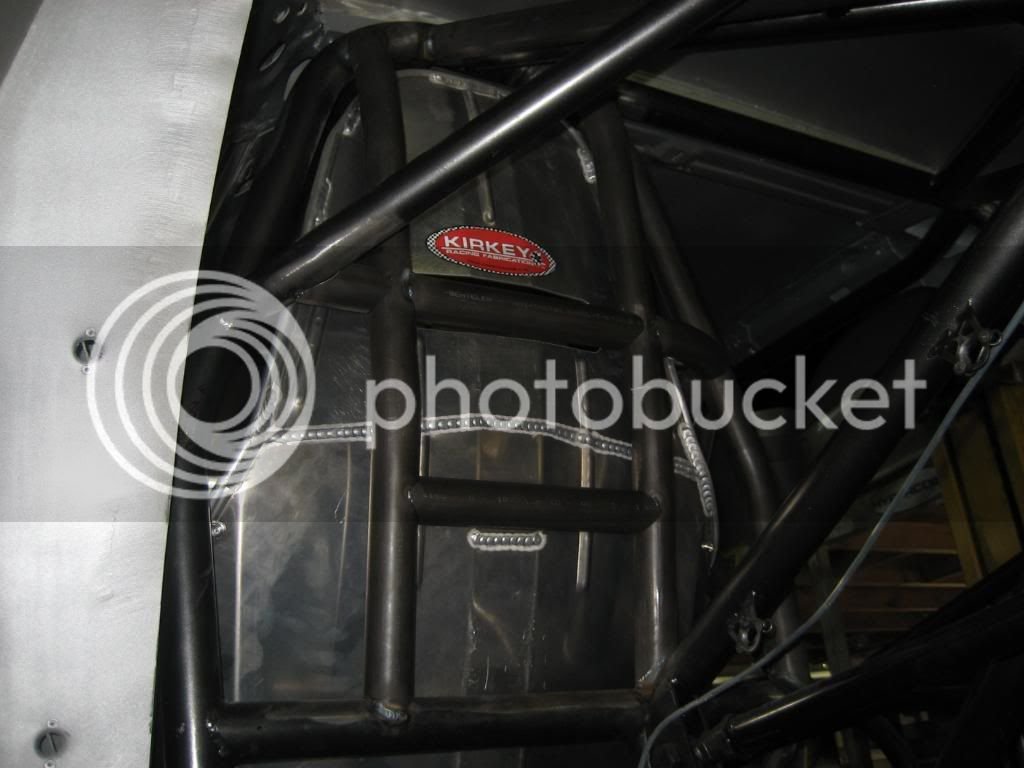

i bought it as an unfinished project, because drag cars are built around the owner we had to do alot of mods because im 6'3'' 120+kg and the previous owner was like 5'6'' 70kg, so we had to set the seat back further and make the funny car cage larger

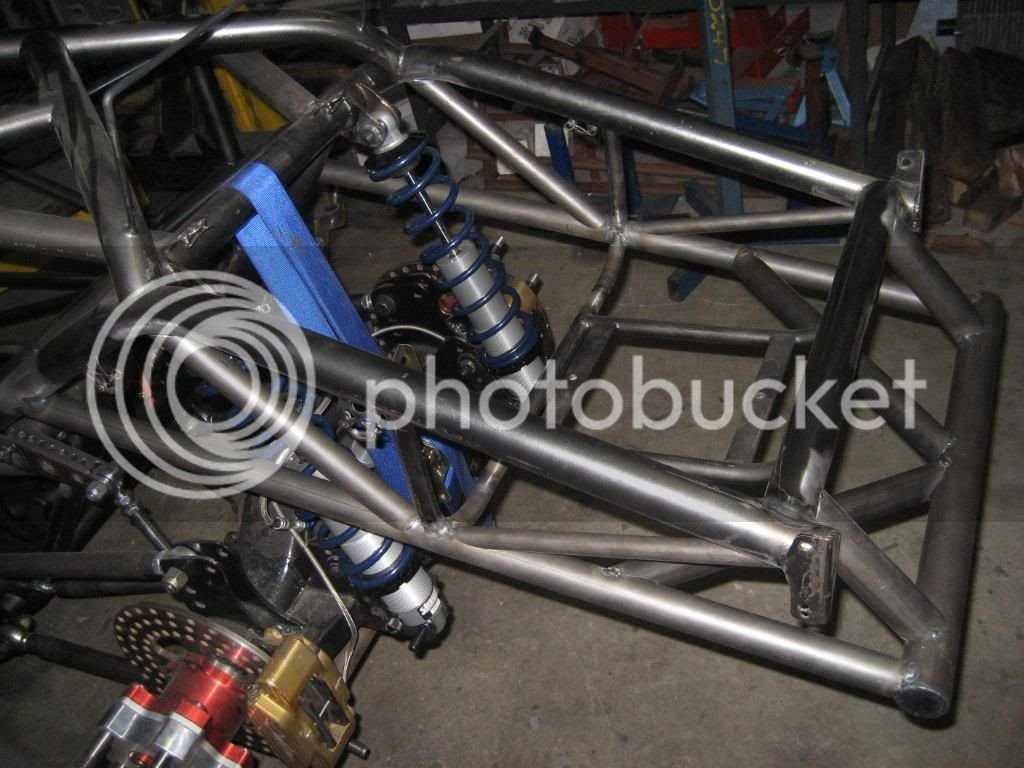

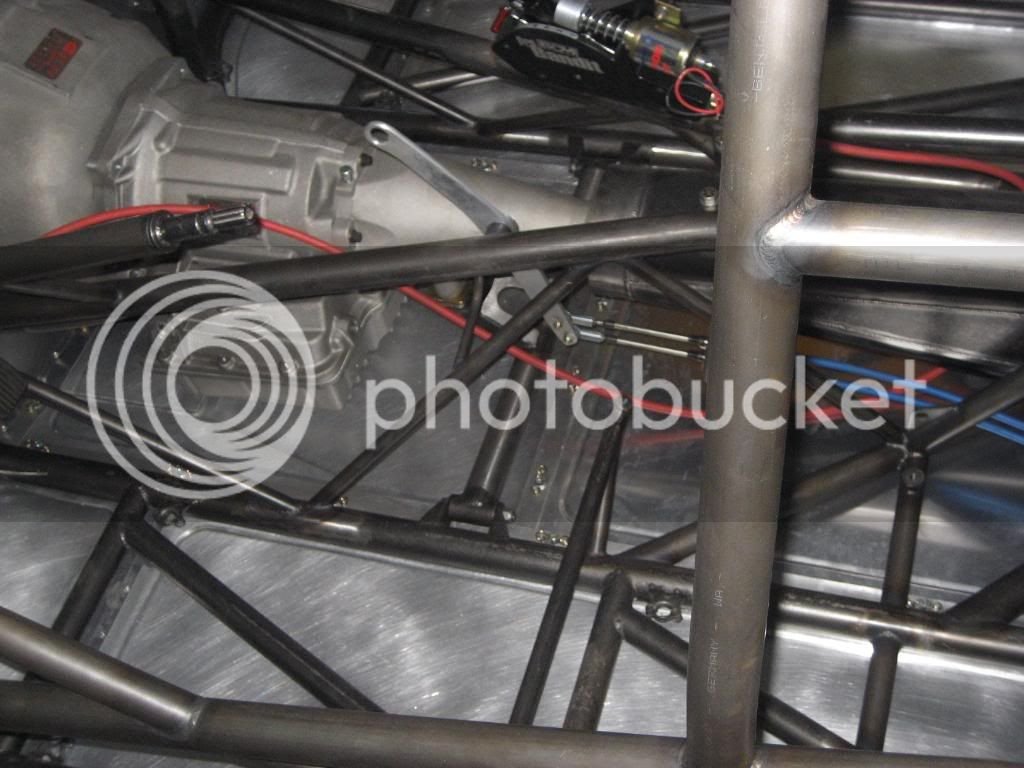

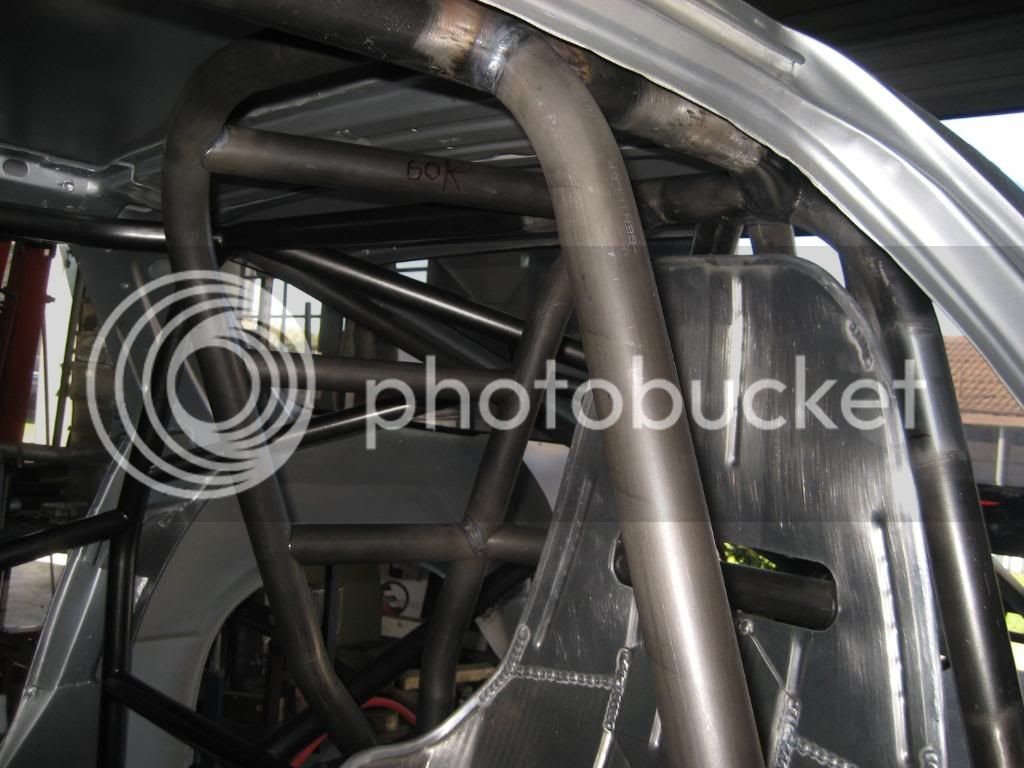

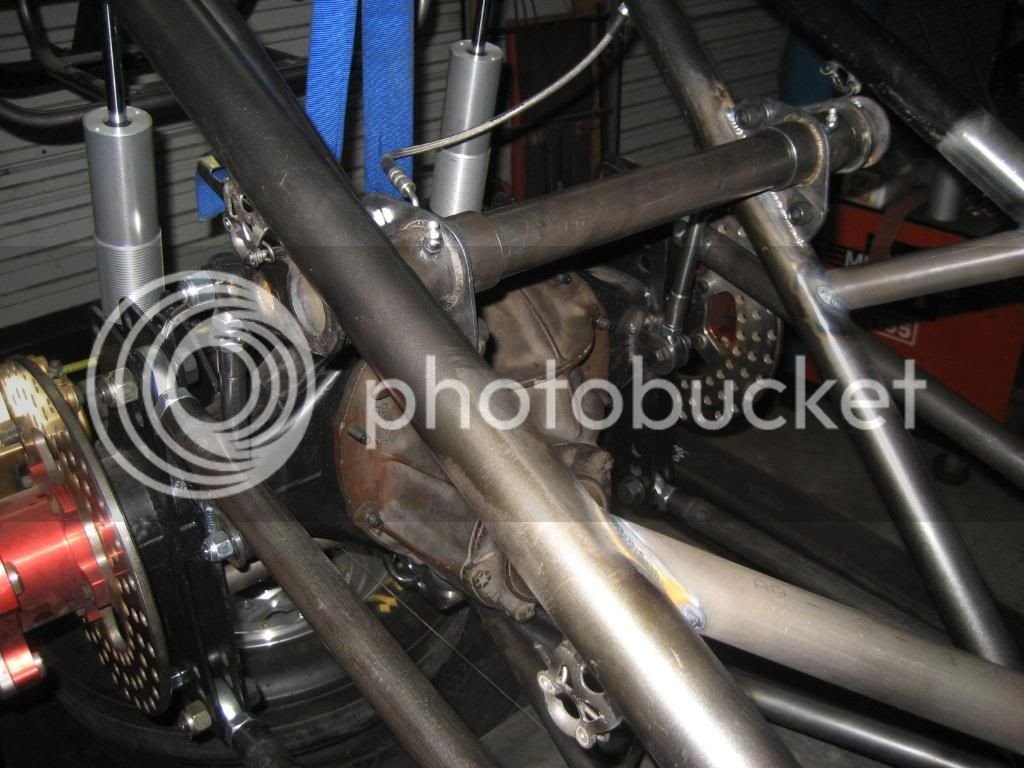

the chassis was only setup to run low 8's but i am chasing mid 6's so u can imagine we had a bit of work to do, Groovy added over 60 bars into the car for triangulation. if it had a big wheelbase like a normal car 108+'' mine is only 98'' i would be confident it would be able to run a 5-second pass.

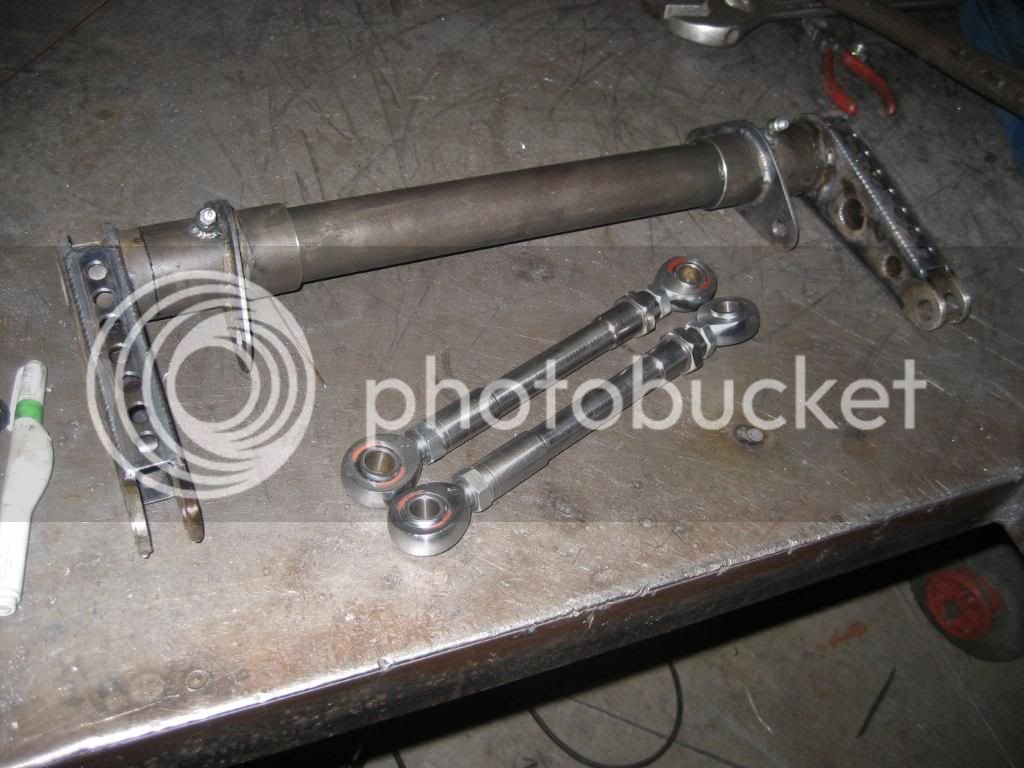

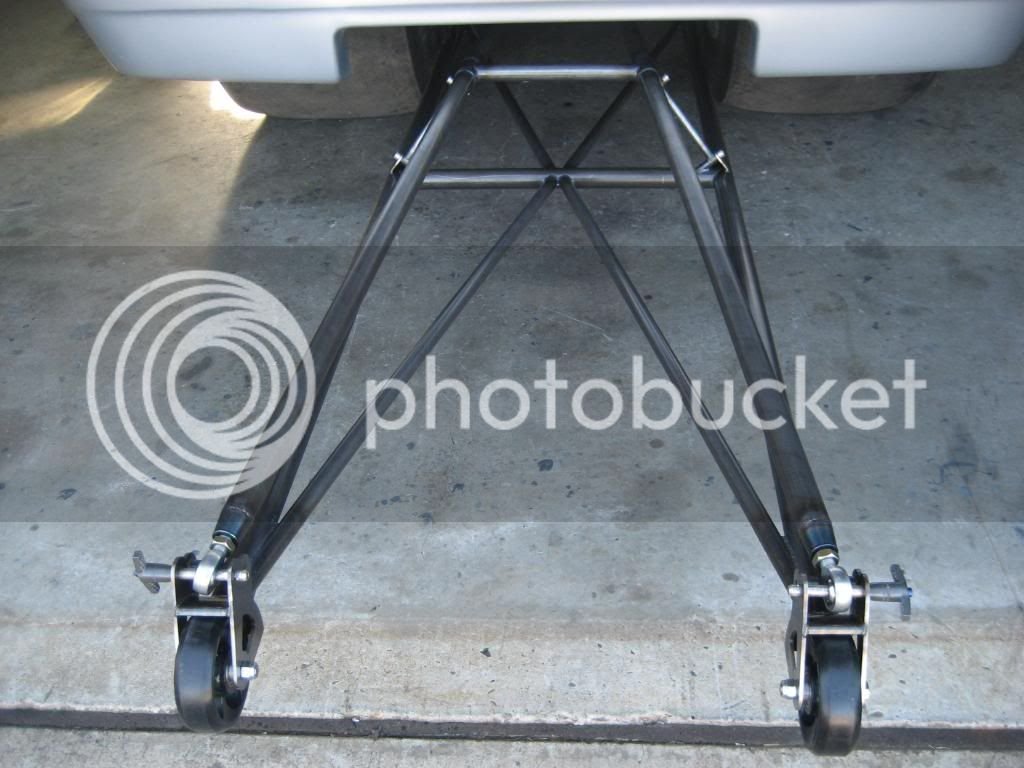

sway bar



[FoPar]



[FoPar]

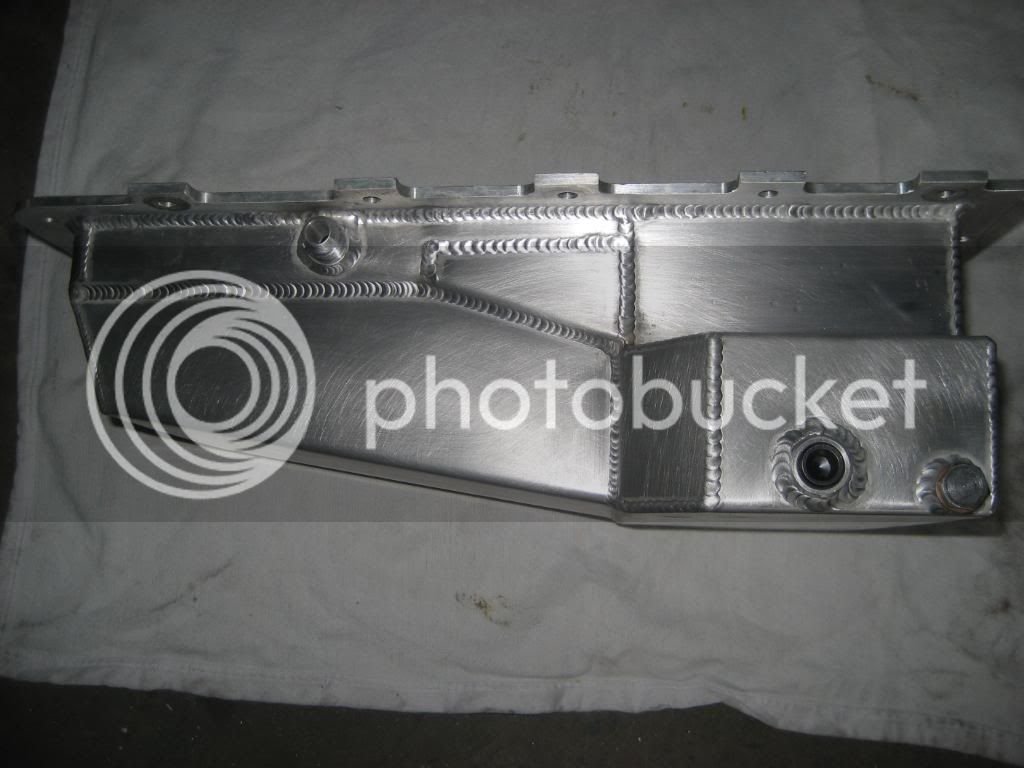

Groovy even done me a souped up oil sump with gates etc everything to control flow

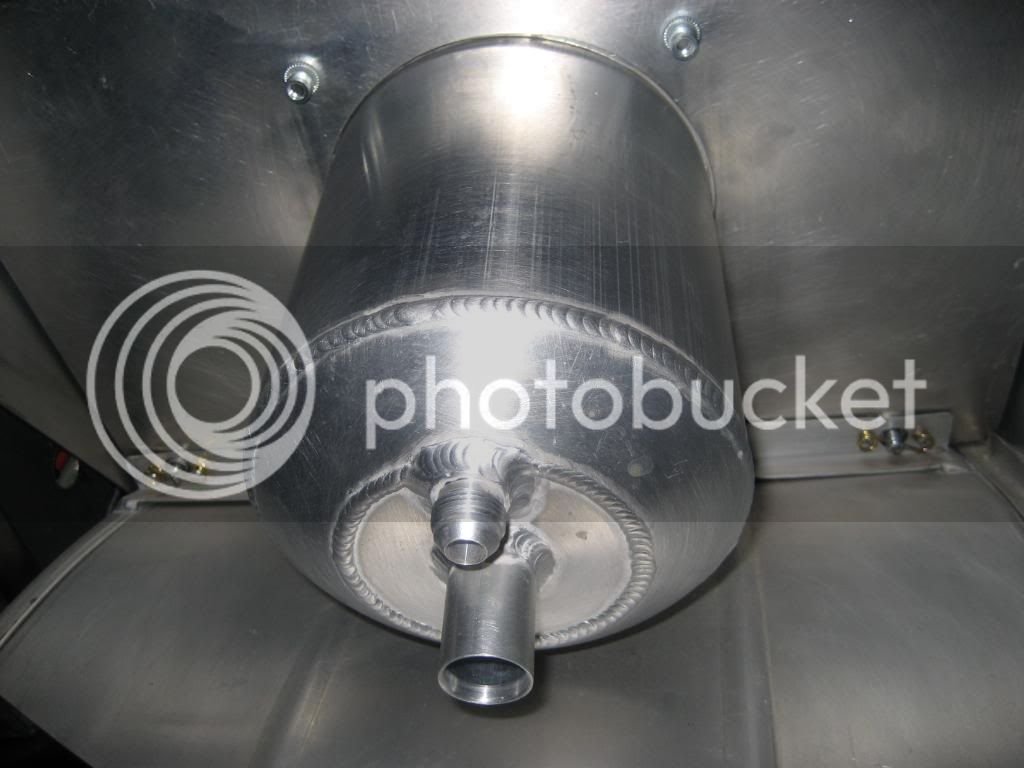

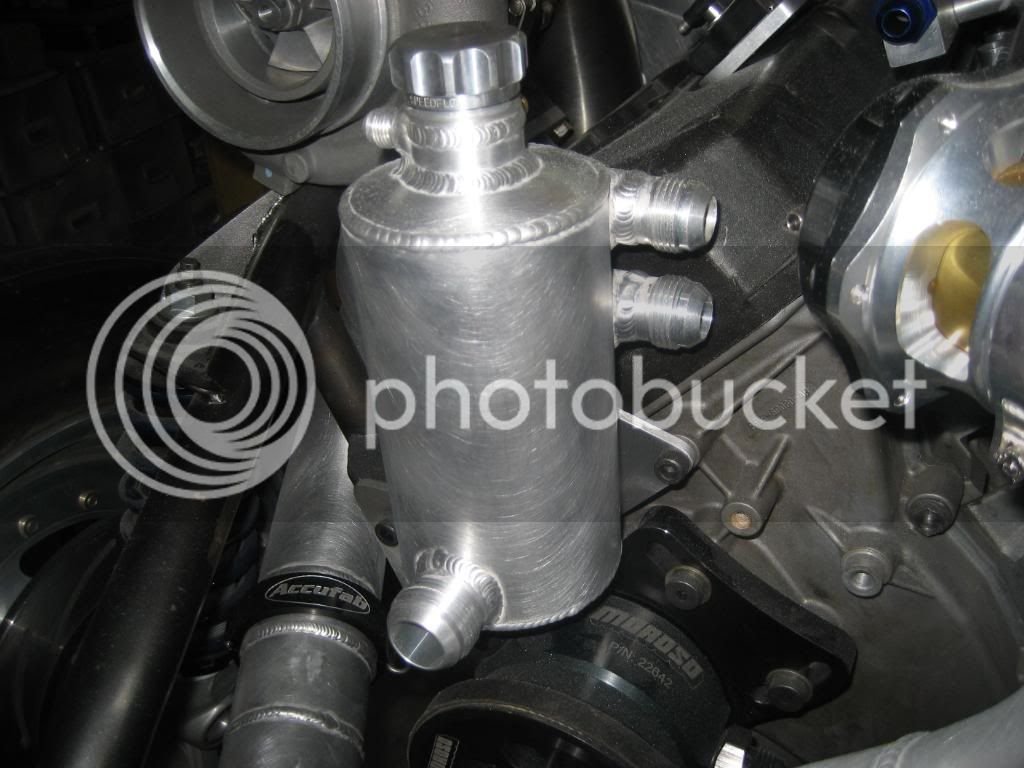

R2D2 found a new home, this is the catch can if i remember correctly was around 7L's everything dumps into it. engine oil, water, tranny oil the overflow is set behind the tyres just incase it fills up all the way it releases out onto the track and away from my tyres



[FoPar]

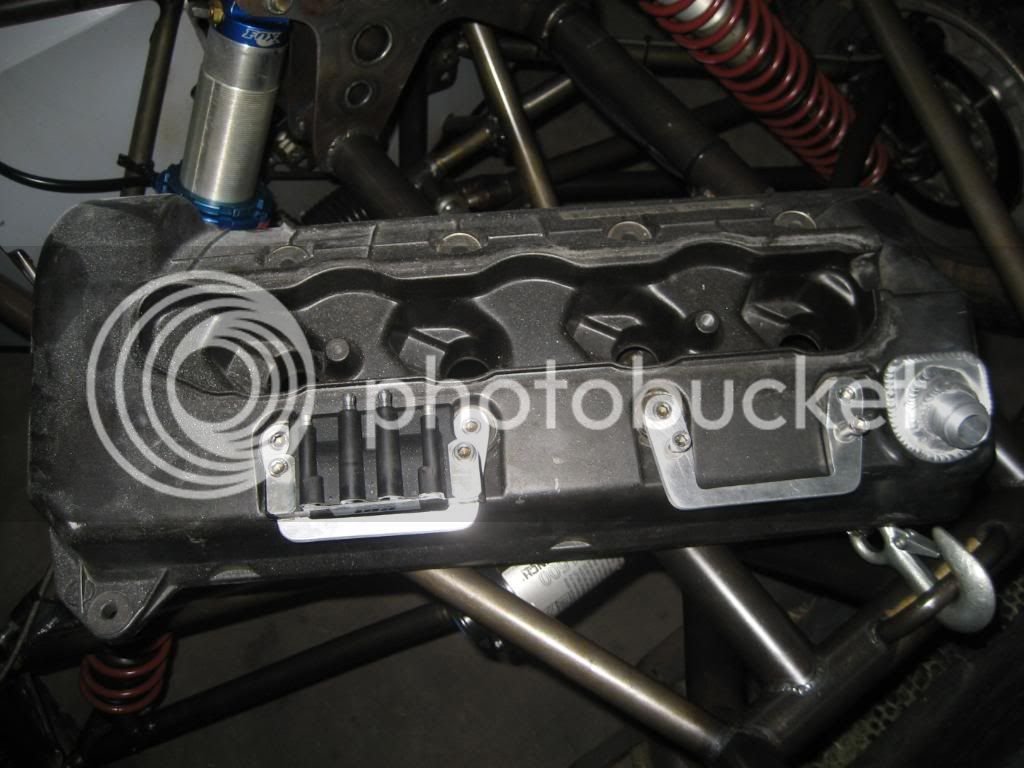

ignition coil brackets

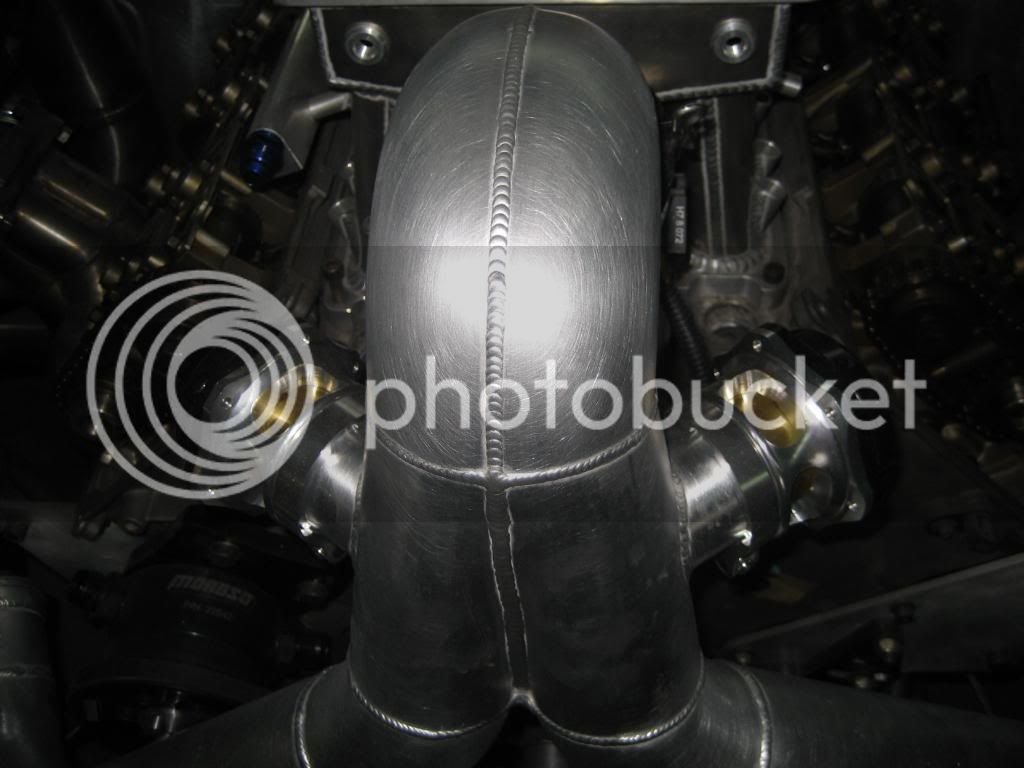

the elephants trunk intake pipe



[FoPar]

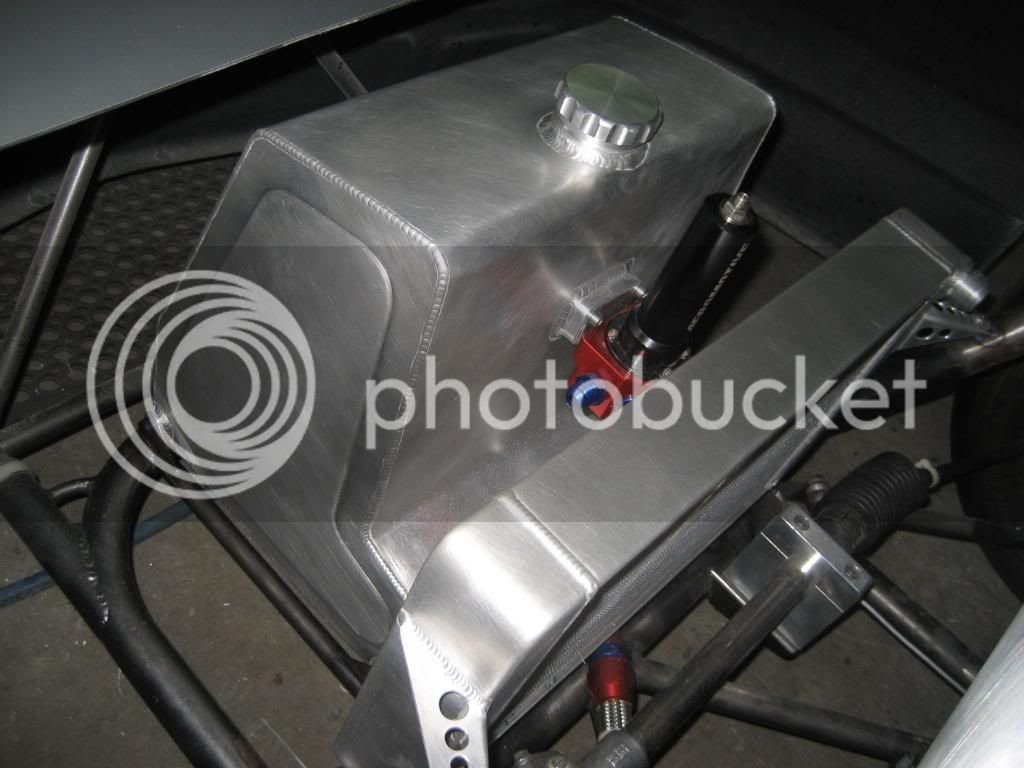

water tank

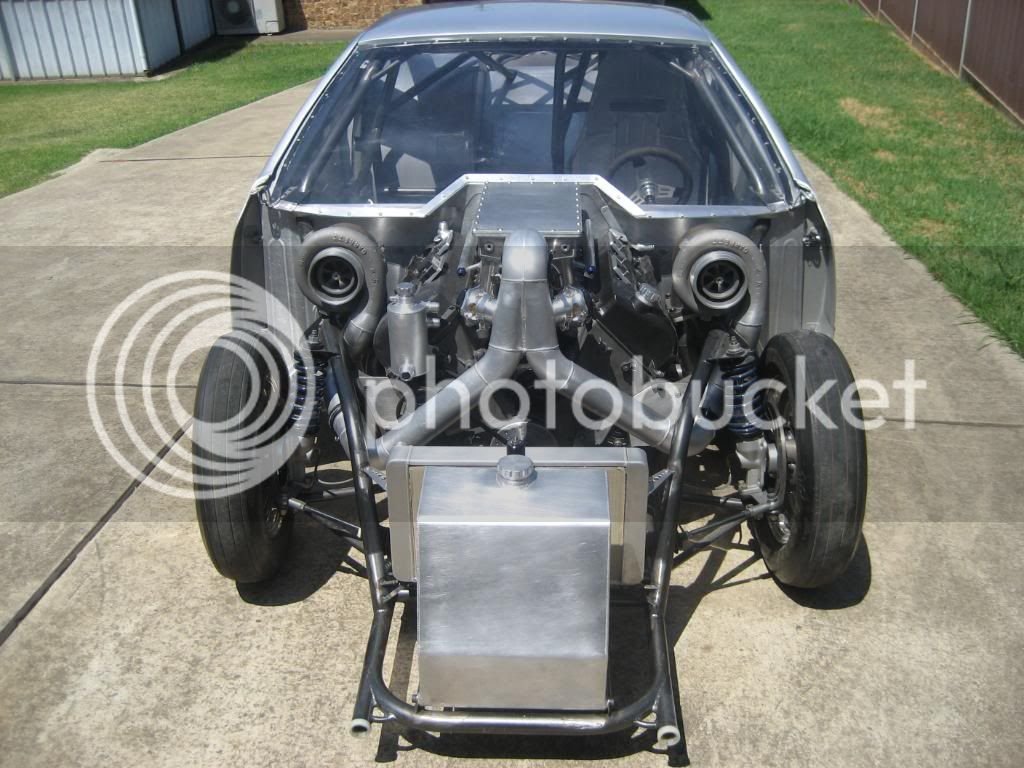

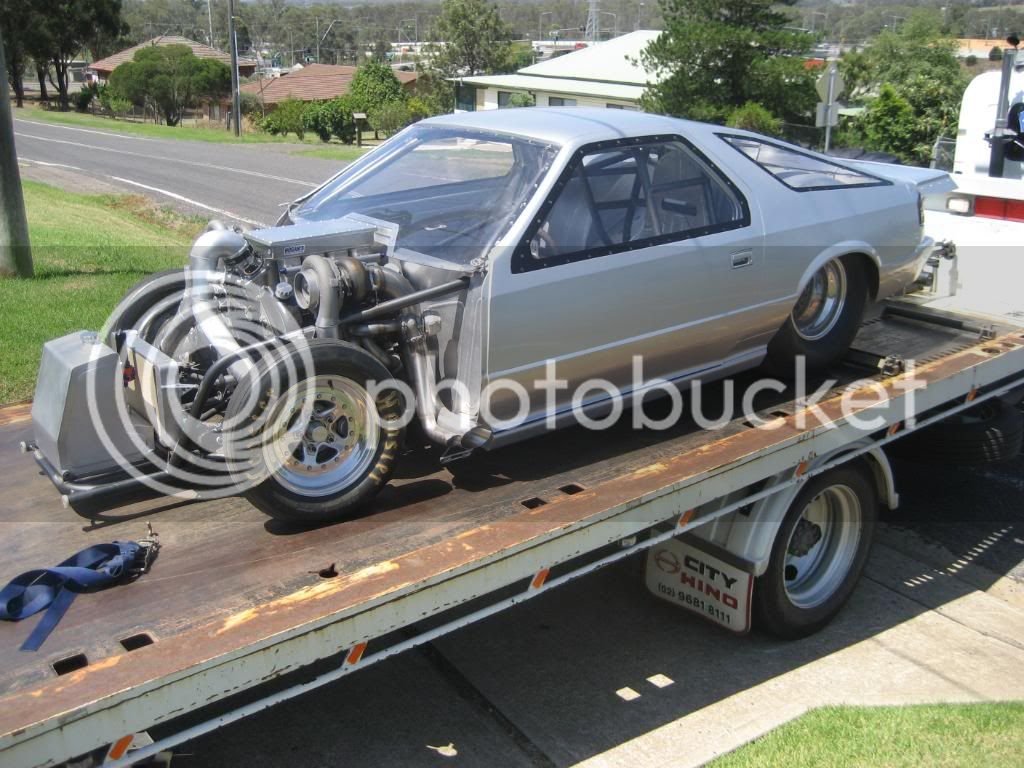

happy times, the old girl was done and coming home


sorry for all the photo's i got WAY too carried away



[Zuffen]

Did you rob a bank?

Glad you're paying for it and not me.

Amazing effort and you deserve to run some nice numbers.

You should ahve asked me to drive. I'm 5'6" and under 70kg. I could have saved you some money.

Might have been a slower car, but hey you'd have spent less!



[SC400TT]

Absolutely stunning!! Beautiful work and welds...Nice to have so much room to work with. Keep us updated.

Ryan



[FoPar]

Did you rob a bank?

Glad you're paying for it and not me.

Amazing effort and you deserve to run some nice numbers.

You should ahve asked me to drive. I'm 5'6" and under 70kg. I could have saved you some money.

Might have been a slower car, but hey you'd have spent less!

thanks guys, will keep posted.

no banks were robbed, it was cheaper than u would think.



[Cobber]

Fantastic work and what a beast.



[Fasteddie]

Nice work...welding looks great !



[spf_lexus]

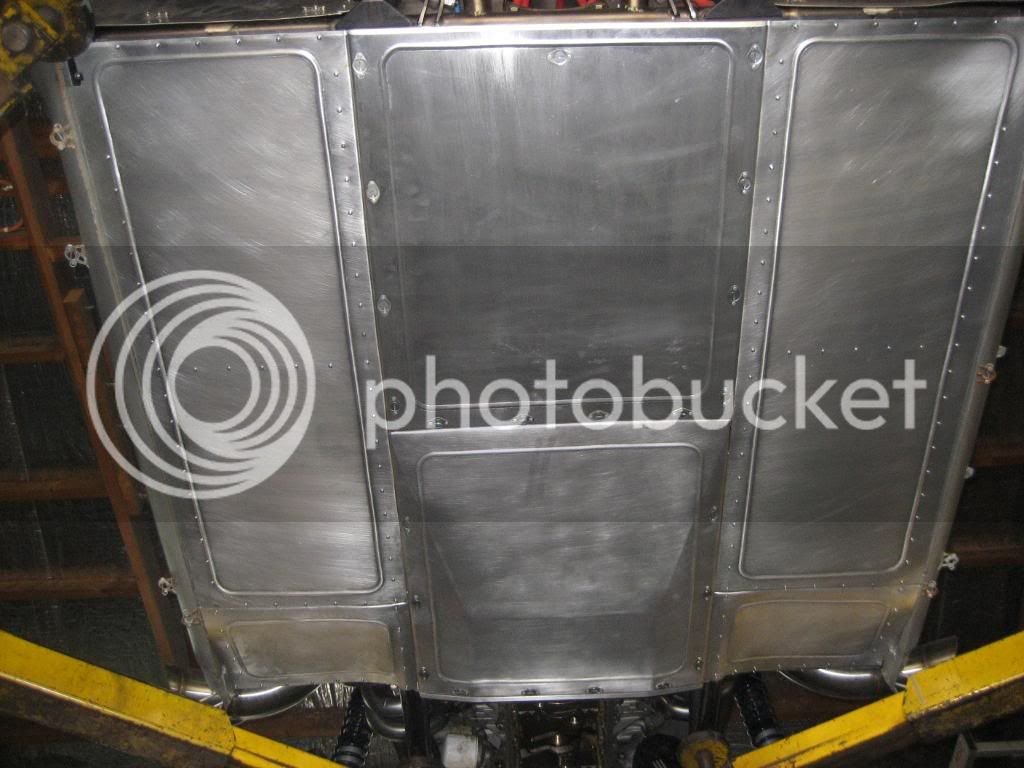

amazing craftmanship. I really like how you made the underside of the car totally flush. Im sure your going to get some insane times at the track. Whats are you aiming for?
