How cool is this charger setup!!

[quadcam boat]

Nice bit of engineering!
http://cgi.ebay.com.au/ws/eBayISAPI.dll?ViewItem&item=130193618089&ssPageName=ADME:B:SS:AU:1123



[JBrady]

Very nice work by www.harrup.com but largely a copy of the Magnussen/Lingenfelter supercharger setup.

Since it is on ebay the pictures will not be up too long but for now here are some pictures.

Front of blower showing jackshaft drive imput from engine crank and supercharger air inlet



Rear showing transfer from jackshaft to supercharger. By installing the supercharger backwards the inlet is placed at the front of the engine.



System upside down, picture showing internal air/water intercooler core.



[JBrady]

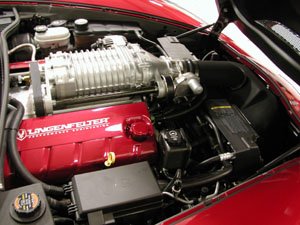

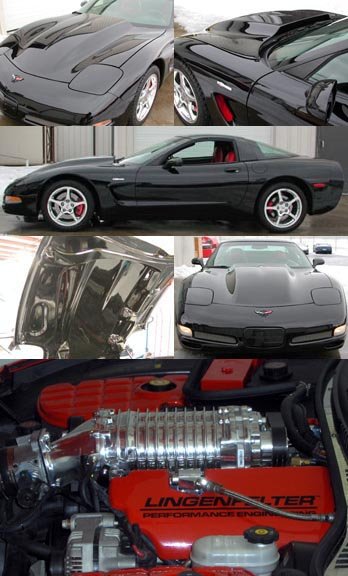

Magnussen/Lingenfelter supercharger system



It has the jackshaft to the side for reduced height.



[Spinall4]

My father and I looked at a 00 Vette with the maggie charger setup, alchy/water injections, headers, other various modds.

That car was a serious beast, we're talking 4th gear wheel spin.
