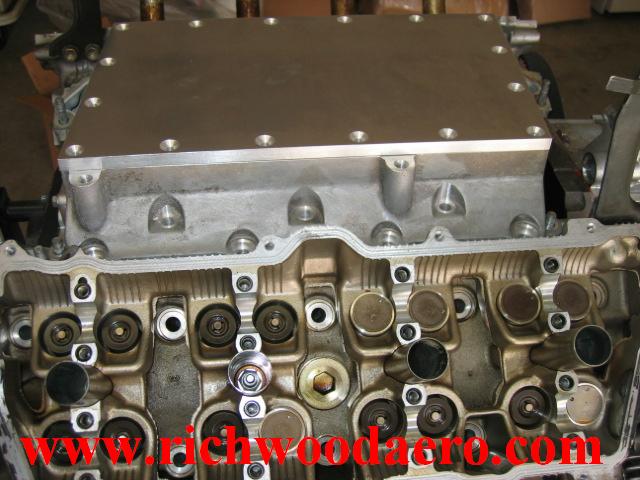

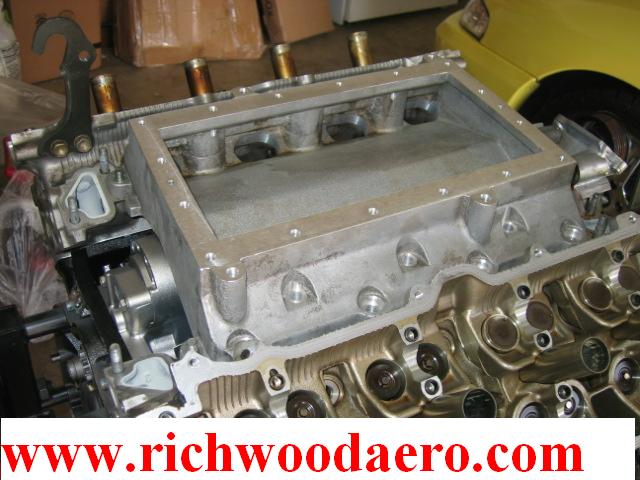

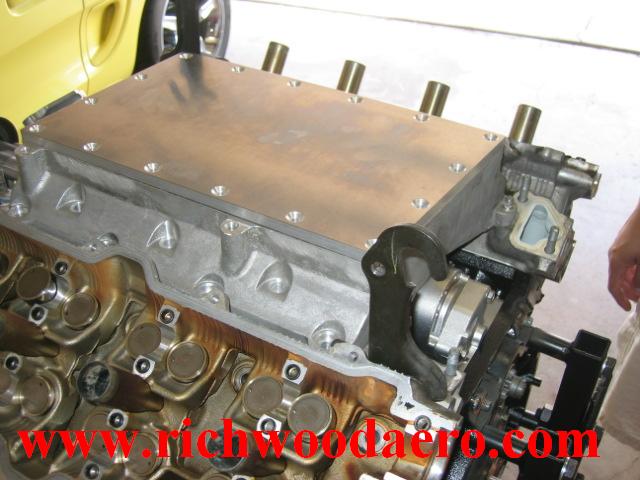

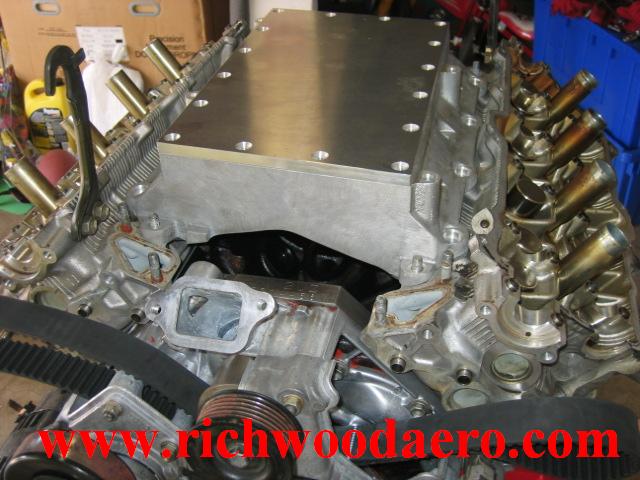

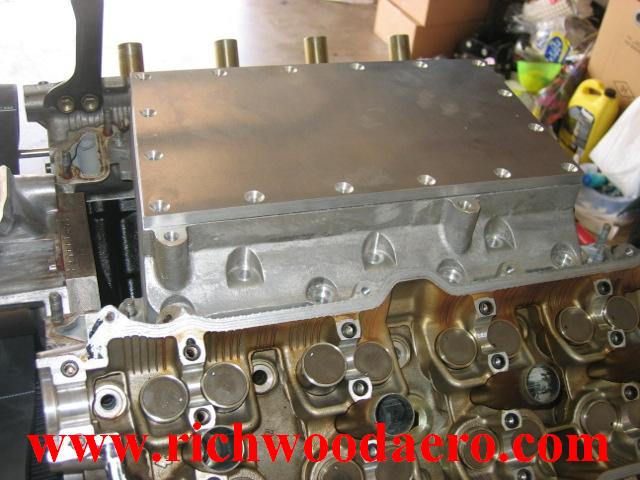

    WOW! Let me by saying this manifold is a work of art. As you know I have an almost build motor in my garage and just received a manifold from Richwood Technologies and open it up. Its a Chrismas present delivered on September. This manifold is BEAUTIFUL. I immediately placed it on my engine and it fits like a glove. Everything clears and it slides right in. The only thing missing a twin screw supercharger. The plate I got was blank so I can put in any root style charger... If you guys have any further questions about this work art, please contact Richwood directly. Richwood not only sell supercharger manifolds but they also offer supercharger kit too. We have a very close working relationship with them and they will take care of our members. Here are some pictures.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. ACleanSC4

    ACleanSC4 New Member

    Joined:
    Mar 16, 2004
    Messages:
    121
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    student
    Location:
    Orange County
    Home Page:
    wow..that is definitely a work of art...

  3. UZZ30-Québec

    UZZ30-Québec New Member

    Joined:
    Apr 25, 2006
    Messages:
    488
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    I work in the construction domain
    Location:
    St-Jean sur Richlieu, Québec, Canada
    does it comes with a gasket or you uses liquid gasket between the manifold and the plate?

    Quite a nice piece of work indeed!

  4. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    The lower manifold comes with two gaskets. However, I ddin't see the plate gasket but I have double check the package. On the other hand, sealing the top plate is not a problem at all. Little silicon will do the job or I can make one out of a blank gasket sheet.

  5. JamesN

    JamesN Moderator

    Joined:
    Feb 1, 2005
    Messages:
    492
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    student
    Location:
    El Monte, Ca
    YYESSS! Its finnally here. I wanna see it in person David. Awesome work on getting the thing bro. Now, finnally I really want to supercharge the LS. OOhh I need a druel bucket. :biggrin:

  6. Smitherz

    Smitherz New Member

    Joined:
    Mar 21, 2006
    Messages:
    749
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Computers
    Location:
    Central Coast, CA
    Home Page:
    Ahhh nice! A supercharger sticking out the hood of a Lexus would be awesome =] Is this going in a Lex? I can't wait for the videos!

  7. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    This is what I need to sit on top of the Richwood Manifold.
    [​IMG]

    This is an example of a Ford Mustang GT dyno.
    [​IMG]

    Not bad if we can use the 4.7 Tundra block as a comparision. One thing though Whipple Supercharger is not cheap.....

  8. fugly

    fugly New Member

    Joined:
    Nov 16, 2004
    Messages:
    311
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    motor mechanic
    Location:
    CAIRNS,QUEENSLAND,AUSTRALIA
    BULLET used LOCTITE MASTER GASKET between the manifold & the top plate on the RICHWOOD manifold they supllied to me

  9. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    James,

    This is a museum piece and I would have to charge you for viewing.

  10. rustnrot

    rustnrot New Member

    Joined:
    May 19, 2006
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    retired
    Location:
    Augusta, GA
    Their site appears to be down for "renovation" at present. Quick question ya'll may know the answer to. Would this fit the circa 1998-2000 4.0L VVTI ski boat engine? I posted a video of this engine I recently got in the epic marine section of this forum.

  11. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    Hello Rush,

    This manifold only work with 1989-1997 1uzfe heads. The 1998-2006 (1uzfe (VVTi), 2uzfe and 3uzfe) would not work. However, perhaps Richwood might be interested of making an adaptor in the future. The major thing different from pre and post 98 heads in the sense of this manifold fitment would be the angle of head inlet. Pre 98 inlet heads are 45 degrees and post 98 is flat. So an adaptor will solve this issue.

  12. rustnrot

    rustnrot New Member

    Joined:
    May 19, 2006
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    retired
    Location:
    Augusta, GA
    OK, how about this item on ebay

    http://cgi.ebay.com/ebaymotors/ws/e...m=200031290302&ih=010&sspagename=STRK:MEWA:IT

    it is TRD supercharger 2003 Toyota 4Runner 00602-17620-604

    It states for 2003 4.7L only but perhaps that is due to ECU issues and not mechanical fitment? Is the deck height different for the 4.0L vs. 4.7L and hence would not fit??

    Of course, a custom ECU setup with the 8 coil-on-plugs is no small task for a blown 4.0L 2nd? gen but doable.

  13. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    Hello Rust,

    Deck height meaning? Block deck height? The 4.7 lower intake is alot taller then the 1uzfe intake if that is what you mean. I think physically the charger would bolt right onto VVTi heads but I am not sure about other accessories.

  14. rustnrot

    rustnrot New Member

    Joined:
    May 19, 2006
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    retired
    Location:
    Augusta, GA
    yes, block deck height. Since this is for a boat, I have infinite clearance above so do not care how tall this is.

    Question is if I unbolt the existing upper/lower intake from the 4.0L 1998-2000 boat engine will this bolt up?

    I can deal with pulley issues (whether it lines up, etc.) and other interference issues myself as well as ecm programming.


    Attached Files:

  15. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    This is an example of deck height (see pic below). 2uzfe block with 1uzfe heads. They are all the same. I am 99.9% sure the charger will fit right into the TTi heads.

    [​IMG]

  16. fugly

    fugly New Member

    Joined:
    Nov 16, 2004
    Messages:
    311
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    motor mechanic
    Location:
    CAIRNS,QUEENSLAND,AUSTRALIA
    Hey LEX, just check if your injectors fit in the manifold, the injector nozzle holes in my manifold were only drilled to about 9mm, should be 10 or 10.5mm from memory.
    Thats the only problem i had with my manifold, hopefully yours is all good

  17. Cobber

    Cobber New Member

    Joined:
    Sep 27, 2005
    Messages:
    914
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    a
    Location:
    a
    The standard injectors fitted fine in mine.
    I now have some larger cc ones to put in. I have bench run the engine using the standard ECU and it ran sweet as can be. I have since sold the ECU and AFM to make way for a stand alone. Yes the neighbour did come around to see what the noise was.

  18. autronic

    autronic Moderator

    Joined:
    Jun 22, 2003
    Messages:
    330
    Likes Received:
    1
    Trophy Points:
    0
    Occupation:
    IT
    Location:
    Bergen, Norway
    Dave:

    Can you do me a big favor ? Can you measure a couple of things on the supercharger intake:

    - Outside length and width where the supercharger sits ?

    - Inside length and width where the supercharger sits ?

    The reason I'm asking I'm looking into fitting an chargecooler to this intake between below the
    supercharger.

  19. fugly

    fugly New Member

    Joined:
    Nov 16, 2004
    Messages:
    311
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    motor mechanic
    Location:
    CAIRNS,QUEENSLAND,AUSTRALIA
    Just my luck to get a dud manifold, lucky it was just a matter of drilling out the holes.

  20. Lextreme

    Lextreme Just call me "Lex"

    Joined:
    Mar 6, 2003
    Messages:
    12,051
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    Professional
    Location:
    City of Halos
    Home Page:
    Autronic,
    Are you addressing the question to me?
