1988 4runner gets a 1uz :)

Discussion in 'Off Roads & 4X4' started by rma, Feb 21, 2011.

  1. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    ok so im liking this way to much .. so my wife says :)

    picked up another 1988 4runner 3.0 auto , blow head gasket otherwise in great shape .
    [​IMG]
    [​IMG]

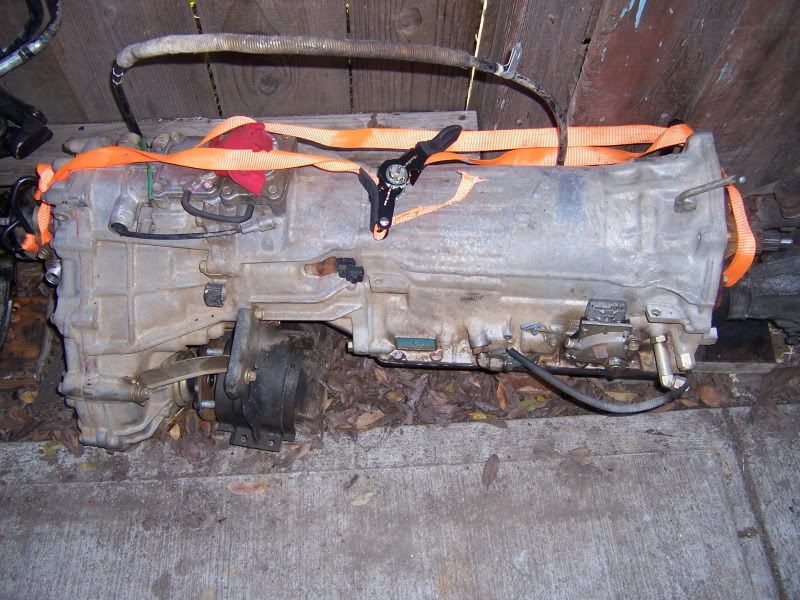

    Donor transmission off a 1995 T-100 3.4 auto.
    [​IMG]
    modified the steering stabilizer and e-brake bracket
    [​IMG]

  2. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    [​IMG]
    [​IMG]
    picked up a donor car this weekend 1992 sc400 , with traction cantrol and hydraulic fan :( $700
    [​IMG]
    [​IMG]

  3. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    [​IMG]
    [​IMG]
    Ready for the scrap yard.
    [​IMG]
    [​IMG]

  4. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    ok so i havent done a swap using a donor with the traction control .Can anyone tell me if i just cut all the traction control stuff off will i be ok or will i get the check engine light on..
    Im hopeing just to wire everything up with out the traction control and not have the check engine light come on .. i will not pass ref here in california with that light on.

    ill do some searching on here but if anyone of the experts can tell me that be great . Thanks !

  5. gloverman

    gloverman Well-Known Member

    Joined:
    Oct 15, 2004
    Messages:
    2,686
    Likes Received:
    54
    Trophy Points:
    48
    Occupation:
    mechanic
    Location:
    Hamilton. New Zealand
    You can leave the traction control stuff off. You wont get a light. Cheers

  6. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    thanks alot for that gloverman.. did find a few threads but non were really definitive. ill just leave eveything off.

  7. Bushwhacker

    Bushwhacker Member

    Joined:
    Mar 5, 2007
    Messages:
    521
    Likes Received:
    0
    Trophy Points:
    16
    Occupation:
    Carpenter
    Location:
    Wales, G.B.
    Confirmed. I've just fitted a SC400 1uz into a 1992 4Runner and deleted the traction control with no problems.

  8. spf_lexus

    spf_lexus New Member

    Joined:
    Dec 1, 2007
    Messages:
    2,267
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    School/work
    Location:
    Murrieta California
    Excellent platform for a 1uz swap! The 1st gen 4runner was the lightest by far. Even with 4wd it will haul some @ss and still get better MPG than the 3.0 v6. Looks good.

  9. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA

    Thanks !!!

    Thanks ,agreed!! love the first gen 4runners ,my favorite of all the runners .
    and yes they do get better gas mileage with the 1uz than with the 3.0 that is Confirmed !:D
    so with this swap im gonna use the sc 400 fuel pump and fuel pump controller. I will be removing the original 3.0 COR and putting the sc' s fuel controller in its place ..
    The other 2 4runners are running the 3.0 original pump on one speed using the FC from the LS 400 ecu through the original 3.0'sCOR relay and seem to be working fine , just want to see the difference in gas mileage when using the sc400 fuel pump controller and the 2 speed pump.

    again thanks for the replies !

  10. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    havent done much .. but heres a couple wiring pics .. just familiarizing myself with the wires and labeling them , getting them ready to splice back together.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  11. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
  12. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    couple more pics :)
    cluster wires and connectors
    [​IMG]
    [​IMG]
    [​IMG]
    ok so finished with labeling and identifying the wires and connectors i will be using off the engine harness.
    i will be leaving some wires as spares .. will add a connector on both sides of the firewall for any future wiring that the owner may want to do. wires will be thru the firewall already for him .
    ive starting on thinning out and labeling the harness for the alt and main power to the ecu
    [​IMG]

  13. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    got some wires identified and labeled .. i also found a mistake in the diagrams .. between two of the diagrams they tell you different things .. one diagram is right and one is wrong for the same circuit. not really important but found it none the less.
    [​IMG]
    finally started soldering [​IMG]
    [​IMG]
    this is what i kept from the harness pictured above
    [​IMG]
    gonna use the ABS relays and box to power the what the EFI,Starter ,ignition main relays were powering in the sc.
    [​IMG]
    [​IMG]

  14. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    [​IMG]
    [​IMG]
    [​IMG]
    gonna have one spare .. for whatever
    [​IMG]
    and first wire soldered tons more to go
    [​IMG]
    [​IMG]

  15. rma

    rma New Member

    Joined:
    Feb 16, 2009
    Messages:
    100
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    maintenance
    Location:
    san jose ,ca USA
    wired the EFi relay and half the ignition main .. got tired
    [​IMG]
    almost done with this small harness .. i basically followed the engine diagram exactly , but used the abs relays instead
    [​IMG]
    still need to go to the junkyard and get the fuse box ill be using for the sarter,EFI,Ignition main relays.. same one that was used on the maroon 4runner ..
    you can see it here attached to the positive terminal of the battery..
    [​IMG]
    so heres a partial diagram of the above harness.. the fuses are not pictured
    [​IMG]

  16. zidaro

    zidaro New Member

    Joined:
    Oct 27, 2006
    Messages:
    92
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    paramedic
    Location:
    mammoth lakes, ca
    hows this project coming along??

  17. spf_lexus

    spf_lexus New Member

    Joined:
    Dec 1, 2007
    Messages:
    2,267
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    School/work
    Location:
    Murrieta California
    Looks like quite a bit of work but worth the savings no doubt. Is the trans/t-case out of the t100 a ditrect bolt in for the 4runner? Im trying to get info on swapping a uz into an 80 series landcruiser. Do you know if the stock trans from the sc400 will bolt up to the 4runner t-case? I know the gears out fo the SC are much better suited for 4wd versus the LS400 gears.

  18. Kang

    Kang 1uzfe+87 sr5 + r151f = dream

    Joined:
    Aug 18, 2018
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    3
    Gender:
    Male
    Occupation:
    Life
    Location:
    Midwest
    Are you still around? 2018..I've an 87 4runner thats completely stripped and is looking at a 1uz swap. I'm currently still working on the truck body and frame..rust maintenance and prevention and just an overall refresh from old components. You do great work, great attention to detail.
